Bidding adieu to sticky ice, but with a grain of salt

(Nanowerk News) As Americans gear up for winter, many will face one of their toughest foes: ice. From delaying flights to making roads slippery, ice accumulation on surfaces wreaks havoc in many ways.
But not all ice is created equal. In new research from the University of Illinois Chicago (Materials Horizons, "Adhesion of impure ice on surfaces"), scientists studied the stickiness of ice containing everyday contaminants such as salt, soap and alcohol. Most laboratory studies typically test ice made from pure water, but in nature, ice is seldom pure.

Key Takeaways

  • Ice accretion has detrimental effects on engineering structures, ranging from automobiles on wintry roads to marine ships in the Arctic.
  • Over the past decades, scientists have devised repellent surfaces that reduce the accretion of pure ice. However, these studies have been limited to fresh-water ice adhesion. But in real life, water freezing on engineering surfaces has many contaminants.
  • For the first time, corroborated with simulations & experiments, we elucidate how the presence of contaminants in freezing water dictates the adhesion of impure ice on industrial surfaces across varied sub-zero temperatures, thereby laying design guidelines for the generation of ice-shedding surfaces.
  • Impurities such as salt and alcohol affect how ice forms on surfaces, such as the hull of ships in arctic conditions

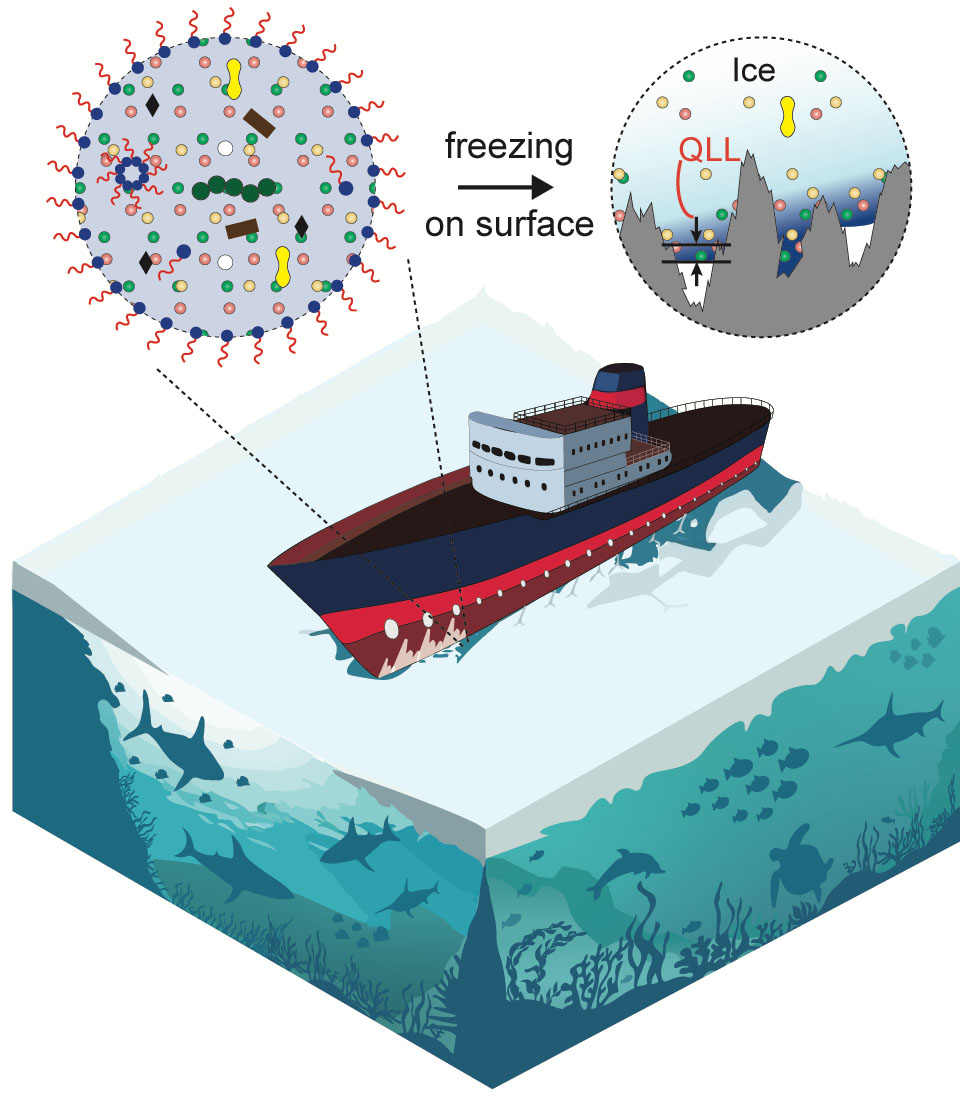

    Impurities such as salt and alcohol affect how ice forms on surfaces, such as the hull of ships in arctic conditions. (Illustration by the Anand group)

    The Research

    “Be it dirty sidewalks or the hull of Arctic-going marine ships, there’s always impurities there,” said senior author Sushant Anand, associate professor of mechanical and industrial engineering at UIC. “So, the natural question that comes to mind is: What is the influence of these compounds on how strongly ice sticks to surfaces?”
    Anand’s laboratory prepared ice with varying concentrations of contaminants and tested how strongly they clung to different industrial materials. Surprisingly, they found that impure ice was much less sticky than ice made from pure water under certain conditions.
    The cause of this slipperiness was traced back to the way water freezes when it contains impurities and the unique structure where ice touches a solid material, called a quasi-liquid layer.
    “The ice region near a solid has liquid-like properties, and its thickness could contribute to how tightly ice sticks,” Anand said. “But this region is really difficult to analyze through experiments.”
    So, he teamed up with UIC colleague Subramanian Sankaranarayanan and his group at UIC/Argonne National Laboratory to study this layer and how it changes with different levels of impurities, using molecular dynamics simulations. They found that as impure water freezes, it expels contaminants that drain along channels and ice-grain boundaries toward the ice base, where it forms a liquid layer that gives ice extra slipperiness.
    “These insights could lead to the design of next-generation winterization techniques that slowly release contaminants to promote facile ice shedding,” said graduated PhD student Rukmava Chatterjee, first author of the paper.
    The surprising test results raised another question: If small salt concentrations make ice less likely to stick to surfaces, why do ships in arctic climates that sail through salt water still struggle with ice formation?
    Experiments revealed that the water freezing rate can influence how impurities migrate to regions where ice touches a solid. A slow freezing process causes the isolation of contaminants into concentrated pockets or even complete expulsion, producing purer and stronger ice. Faster freezing preserves the contaminants within the ice and their accumulation at the ice-solid interface, leading to weaker adhesion.
    “Our study represents just the tip of the iceberg, opening new lines of investigation of how impure ice adheres with widespread implications across multiple disciplines,” Anand said.
    Source: University of Illinois Chicago (Note: Content may be edited for style and length)
