Electronic Paper: The Future of Sustainable and Flexible Displays

What is Electronic Paper?

Electronic paper, also known as e-paper or electronic ink (E Ink), is a display technology that mimics the appearance of ordinary paper. It utilizes the principles of electrophoresis to create a reflective display that can be read easily in various lighting conditions, including direct sunlight. Unlike traditional electronic displays, electronic paper consumes power only when the content is changed, making it highly energy-efficient.

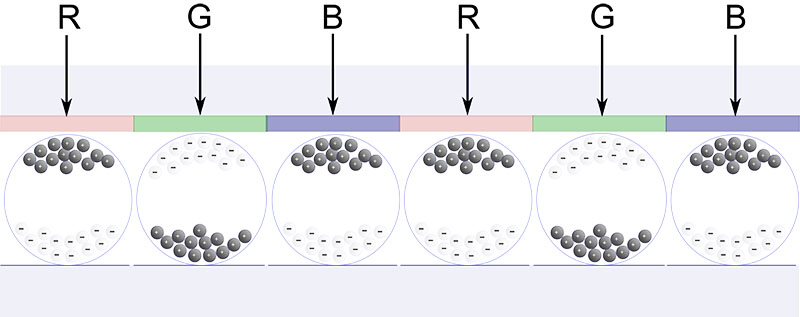

Schematic representation of an electrophoretic display using RGB color filters, demonstrating how charged particles move to create different colors. (Image: Wikimedia Commons, CC BY-SA 3.0)

How Does Electronic Paper Work?

Electronic paper displays are based on the principle of electrophoresis, which involves the movement of charged particles in an electric field. The key components of an electronic paper display are:

Microcapsules: Millions of tiny microcapsules, each about the diameter of a human hair, form the active layer of the display. These microcapsules contain positively charged white particles and negatively charged black particles suspended in a clear fluid.
Electrodes: Transparent electrodes are placed on the top and bottom of the microcapsule layer. These electrodes apply an electric field to control the movement of the charged particles within the microcapsules.
Backplane: The backplane consists of an array of thin-film transistors (TFTs) that switch the electric field on or off for each pixel in the display. This allows for precise control over the movement of the charged particles and the resulting image.

When an electric field is applied, the charged particles move to the top or bottom of the microcapsules, depending on their polarity. If the white particles are attracted to the top, the pixel appears white. Conversely, if the black particles are attracted to the top, the pixel appears black. By selectively controlling the electric field for each pixel, the desired image is formed on the display.

Advantages of Electronic Paper

Electronic paper offers several advantages over traditional electronic displays:

Readability: Electronic paper displays provide a high-contrast, glare-free reading experience that closely resembles printed paper. The reflective nature of the display ensures excellent readability even in bright sunlight.
Energy Efficiency: Unlike LCD or OLED displays, electronic paper consumes power only when the content is changed. Once an image is displayed, it remains visible without requiring any additional power, leading to extremely low energy consumption.
Durability: Electronic paper displays are highly durable and can withstand bending, flexing, and even dropping. They are less susceptible to damage compared to traditional glass-based displays.
Thin and Lightweight: Electronic paper displays are incredibly thin and lightweight, making them ideal for portable devices such as e-readers, smartwatches, and wearable electronics.

Applications of Electronic Paper

Electronic paper has found applications in various fields, including:

E-Readers

One of the most well-known applications of electronic paper is in e-readers, such as Amazon Kindle and Kobo devices. These devices utilize electronic paper displays to provide a comfortable reading experience similar to printed books, with the added benefits of portability and access to a vast library of digital content.

Smartwatches and Wearables

Electronic paper displays are increasingly being used in smartwatches and wearable devices due to their low power consumption and excellent visibility in various lighting conditions. The thin and lightweight nature of electronic paper also makes it suitable for comfortable and stylish wearable designs.

Signage and Displays

Electronic paper is finding applications in digital signage, public information displays, and retail price tags. The low power consumption and ability to maintain a static image without power make electronic paper an attractive choice for these applications, reducing energy costs and environmental impact.

Comparison with Other Display Technologies

Electronic paper displays offer unique advantages compared to other common display technologies like LCD (Liquid Crystal Display) and OLED (Organic Light-Emitting Diode). Here's a comparison of these technologies in terms of performance, cost, and application suitability:

Performance

Readability: Electronic paper displays provide excellent readability, even in bright sunlight, due to their reflective nature. LCD and OLED displays can struggle with glare and reduced visibility in bright environments.
Refresh Rate: LCD and OLED displays have faster refresh rates, making them suitable for video content and dynamic user interfaces. Electronic paper displays have slower refresh rates, limiting their use for fast-moving content.
Color: LCD and OLED displays offer full-color capabilities, while most electronic paper displays are currently monochrome. However, advancements in color electronic paper technology are ongoing.
Power Consumption: Electronic paper displays have extremely low power consumption, as they only require power when changing the displayed content. LCD and OLED displays consume power continuously to maintain the image, resulting in higher energy usage.

Cost

The cost of electronic paper displays is generally higher compared to LCD displays due to the specialized materials and manufacturing processes involved. OLED displays are typically the most expensive among the three technologies. However, the long-term cost savings from lower power consumption can make electronic paper displays more cost-effective in certain applications.

Application Suitability

E-readers and Signage: Electronic paper displays are ideal for applications that require long battery life, readability, and low power consumption, such as e-readers and digital signage.
Smartphones and Televisions: LCD and OLED displays are better suited for applications that demand high refresh rates, vibrant colors, and video playback, such as smartphones, tablets, and televisions.
Wearables: Electronic paper displays are well-suited for wearable devices like smartwatches due to their low power consumption and readability in various lighting conditions. However, OLED displays are also popular in wearables for their vibrant colors and flexibility.

The choice between electronic paper, LCD, and OLED displays depends on the specific requirements of the application, such as power consumption, readability, color reproduction, and cost. As electronic paper technology continues to advance, it may become increasingly competitive in a wider range of applications.

Future Developments

Researchers and companies are continuously working on improving electronic paper technology. Some of the key areas of focus include:

Color Displays: While most electronic paper displays are currently monochrome, efforts are being made to develop full-color electronic paper displays. This would expand the range of applications and enhance the visual appeal of electronic paper devices.
Faster Refresh Rates: One limitation of electronic paper displays is their relatively slow refresh rates compared to LCD or OLED displays. Researchers are working on developing electronic paper with faster refresh rates to enable more dynamic content and smoother user interactions.
Flexible and Rollable Displays: The inherent flexibility of electronic paper makes it a promising candidate for creating flexible and rollable displays. These displays could be integrated into various products, such as smart clothing, roll-up tablets, and even electronic newspapers.

As electronic paper technology continues to advance, it is expected to open up new possibilities for sustainable, energy-efficient, and user-friendly displays across a wide range of applications.
