Ballistic transport in long molecular wires: porphyrin nanoribbons

(Nanowerk News) The conductance of classical electric components (i.e. how much current a wire sustains at a given applied voltage) typically decays with increasing length. In general, this is also the same behaviour found at the nanoscale with 1D molecular wires. Now, researchers have demonstrated that, once more, things are different in the nanoworld (i.e. there is plenty of room at the bottom).
Researchers at IMDEA Nanociencia and Oxford University have measured the conductance of porphyrin nanoribbons, obtaining extraordinary conductance properties –near perfect transmission- when the molecular energy level is in resonance with the electrode Fermi level.

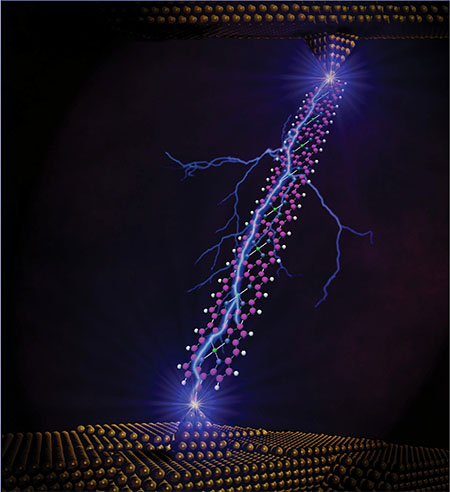

Electric current flows through the porphyrin ribbon with the lowest possible resistance
Electric current flows through the porphyrin ribbon with the lowest possible resistance. (Image: Edmund Leary)
The search for long molecular wires that can transport charge efficiently drives the field of molecular electronics. The problem since the beginning, however, has been that the conductance of molecular wires typically decays significantly with their length.
The reason behind this is an often strong mismatch between the energy of the transporting molecular orbitals and the electrode Fermi level (the highest occupied electronic state of a metal, where electron transport takes place). This mismatch means that electrons must tunnel through the molecular states, which results in an exponential decrease in the conductance as the length of the molecular wire is increased.
This is typically assessed by building longer and longer compounds (i.e. adding successive units to an oligomer chain) and observing how the conductance changes. The result is that molecules longer than about 3-4 nanometres normally become too resistive for single-molecule measurements.
As π-conjugated molecular compounds (i.e. compounds with alternating single-double or single-triple bonds) become longer, the gap between the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) narrows, which should favour conductance. In reality, the greater distance the electrons must tunnel wins out, and the conductance quickly becomes vanishingly small. The inefficiency with which molecular junctions transport charge is a major factor hindering the development of electronic circuits based on molecules.
In their latest work, researchers jointly led by Dr. Edmund Leary (Molecular Electronics Group at IMDEA Nanociencia) aimed to create long, conductive, molecular junctions with low contact resistance to the electrodes. They selected porphyrin oligomers – polymer chains comprising a small number of repeat units – as the best candidates for molecular wires because of their stability, rigidity and the fact they can be fused into tapes analogous to graphene nanoribbons.
Furthermore, porphyrins are biological molecules, ubiquitous in nature (blood, plant leaves, enzymes, etc.). A previous joint study between IMDEA, Oxford, Liverpool and Lancaster Universities showed that fused porphyrins behave differently to other types of oligomer. The high degree of electron delocalization afforded by ring fusion gives rise to a steep decrease in the HOMO–LUMO energy gap with length.
This led to the first series of molecular wires that actually increase conductance with length above a certain bias voltage (JACS, "Bias-Driven Conductance Increase with Length in Porphyrin Tapes"). Despite this, however, electron transport was still shown to proceed via tunneling at low voltages, which was only about 0.01 % of the theoretical limit.
An intriguing feature of porphyrins is that their properties strongly depend not only on the structure and length of the molecule, but on the way individual rings are connected. They can become either very resistive or very conductive wires depending on the bonds between neighbouring rings, even though they are essentially composed of the same kind of atoms.
Dr. Leary and his team studied chains of porphyrin rings triply-fused along the length of the wire, which were designed and synthesized by the team at Oxford University led by Prof. Harry Anderson. These bonds allow highly-efficient delocalization of electrons, a key feature for increasing the conductance of a molecule. They have extremely small HOMO–LUMO energy gaps, less than 1 eV for the longest compounds, making them infra-red absorbers. They also included extremely bulky sidechains to prevent the gold electrodes from interacting directly with the side of the nanoribbons.
In their experiments, the researchers in the Leary group “fished” the molecules with the tip of a scanning tunneling microscope (STM) under ambient conditions. In this method, known as the STM breakjunction technique, the molecules are deposited onto a gold surface and a voltage is applied between the STM’s tip and the surface. They form and break thousands of individual junctions using this fishing approach in order to “catch” single molecules and form on the order of hundreds–thousands of molecular junctions.
The researchers measured the conductance as the electrodes are separated with a molecule wired in-between, which allowed them to be sure they have trapped just a single molecule. They also measured the length of the molecular junctions, providing a good check that they were really measuring the end-to-end properties of the wires.
Chemical structure of the longest porphyrin nanoribbon measured with eight repeat units
Chemical structure of the longest porphyrin nanoribbon measured with eight repeat units. (Image: IMDEA)
The molecules were designed to make as efficient a contact as possible to the electrodes. For this, carbon-based acetylene anchors were used. These consist of a carbon-carbon triple bond plus a terminal group which comes off upon contact with gold under ambient conditions, forming a robust gold-carbon chemical bond (Au-C≡C). These groups were added to the ends of gradually increasing chains of fused porphyrins, extending all the way to eight repeat units that measure over 7 nm end-to-end.
If these molecular wires were to behave like typical carbon-based compounds, the researchers would not have had a chance of measuring the conductance of the longest members of this family. To their amazement, however, the conductance of the longest compound (8-mer, > 7nm) was almost identical to the shortest compound, the monomer, which measures little more than 1 nm in length.
This is only possible in the quantum regime, and shows that the HOMO–LUMO gap reduction compensates for the length increase even at such large distances. However, measurements showed that electron transport is still a tunneling process at low-bias, and the conductance was still 100–1000 times lower than theoretically possible.
Things started getting very interesting when the researchers applied a varying bias voltage to the junctions. In some of the junctions, impressively they found a maximum conductance at zero-bias, which decreased towards larger voltages. This is the reverse of the typical behaviour.
Equally amazingly, the conductance in these junctions was much higher than previously observed and, in a significant number of junctions, reached the theoretical limit of 77.5 μS, which is also known as 1 G0, the largest conductance possible through a single quantum channel.
To put this into context, this is the typical conductance of individual atoms such as gold or silver. Short chains of about 4–5 atoms can be made with a constant conductance, but they require ultra-low temperatures for their stability. The porphyrin nanoribbons, on the other hand, are an order of magnitude longer than the longest chains, and they are stable at room-temperature.
Ballistic electron transport is known in metallic carbon nanotubes, and has also been claimed for very small molecules. The key aspect here is that this is the first time ballistic conductance has been observed at low-bias in long (> 7 nm) atomically-precise molecules with known atomic contacts connecting the wire to the electrodes. This is a true milestone for the field.
Schematic showing the molecular fishing procedure and the evolution of a single-molecule junction as the distance between the STM tip and surface electrodes is increased
Schematic showing the molecular fishing procedure and the evolution of a single-molecule junction as the distance between the STM tip and surface electrodes is increased. (Image: IMDEA)
The trick to making the molecules conduct in this impressive manner involves changing the number of electrons on the molecule, that is converting them from neutral to charged molecules (a process often referred to as doping). This happens when a sweeping bias voltage is applied to molecular junctions. If a high-enough bias is reached, the molecular levels are brought into what is called “resonance” with the metallic electrodes.
This means that the molecular levels (either HOMO or LUMO) have the same energy as the electrons at the Fermi level in one of the electrodes. In this resonant regime, electrons freely travel through the molecular wire, but occasionally one may become localized on the molecule. In principle, this can happen both for electrons and holes (holes represent the absence of an electron in an energy level), depending on whether transport is HOMO or LUMO dominated.
When this happens, a remarkable effect appears. Rather than the charge dissipating back onto the electrodes when the bias voltage is lowered back to zero, it frequently remains on the molecule for long periods, at least as long as the lifetime of the molecular junction. Crucially, this changes the alignment of the molecular levels due to the charge imbalance on the molecule.
This is the key aspect of the entire process. What the researchers believe is that the HOMO or the LUMO shift such that when the bias is brought back to zero, instead of having the original energy mismatch, a molecular energy level now aligns perfectly with the metallic Fermi level. This explains the low-bias ballistic conductance.
Among the possible mechanisms that could cause a maximum in conductance at zero-bias, Kondo is an obvious candidate. This was, however, immediately ruled-out as it is a purely low temperature process, occurring at few Kelvin. At room temperature the only explanation for their results was perfect energy level alignment and ballistic conductance.
The study was also extremely meticulous. To be sure about the binding configuration of the molecules, the team separately studied how porphyrin monomers with different proto-anchor groups bind to the gold electrodes. This was necessary as, prior to this study, it was unclear exactly how the carbon-carbon triple bond binds to a gold surface and, in particular, whether it depends on the starting acetylene, which can be terminated with a variety of groups that may or may not cleave upon exposure to gold. They obtained near-identical conductances for different molecules with different proto-anchor groups, although some did not form molecular junctions at all.
Those that did not form junctions had groups that were not expected to cleave upon exposure to gold. This important observation told them that the proto-anchor groups that cleave produce the same kind of gold-carbon bond, a linear Au-C≡C bond. This was nice because it allows the use of trimethylsilyl (TMS) protected acetylenes, which are synthetically simple to work with.
The most exciting moment for Edmund was to see the conductance peak at zero voltage. “We were expecting to see high conductances at high voltages, but not values at or around G0 at zero bias” Edmund explains. “In fact, we were a little disappointed with the initial low-bias results, which showed that despite the ultra-narrow HOMO–LUMO gaps, electron transport is still suppressed for the neutral molecules. We knew we were on to something, however, when we started sweeping the bias voltage and started observing charged molecular junctions with ultra-high conductances. When we looked in detail at the data and found the conductance peaking at zero-bias, we realized that this was very good evidence for ballistic electron transport.”
The results, now published in the Journal of the American Chemical Society ("Ballistic Conductance through Porphyrin Nanoribbons"), show how molecules can behave like metal chains and conduct electricity at the theoretical limit, opening the exciting possibility of moving beyond 10 nm in single-molecule conductance experiments.
This work is the result of a collaboration between the Molecular Electronics Group at IMDEA Nanociencia led by Edmund Leary and the Chemistry Research Laboratory at Oxford University, led by Harry Anderson, an expert in the synthesis of porphyrins oligomers.
