Researchers put a new spin on molecular oxygen

Jul 17, 2019
Researchers put a new spin on molecular oxygen (Nanowerk News) While pinning down a single oxygen atom sounds difficult, trying to then manipulate electrons associated with that single atom to alter its charge sounds downright impossible. However, for the first time, this achievement has been reported by an international research team led by Osaka University.
Along with collaborators from Slovakia and the United Kingdom, graduate student Yuuki Adachi from Osaka University's Department of Applied Physics has recently published this research in ACS Nano ("Tip-Induced Control of Charge and Molecular Bonding of Oxygen Atoms on the Rutile TiO2 (110) Surface with Atomic Force Microscopy").

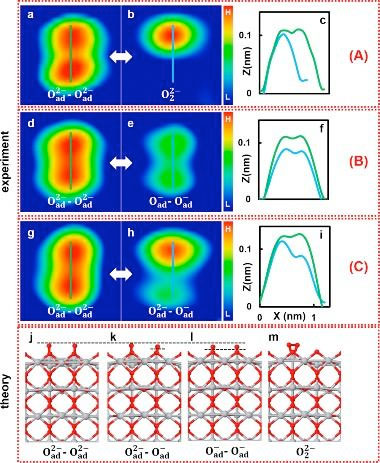

(a-c) AFM images before (a) and after (b) KPFS manipulation of Oad2--Oad2- with the tip positioned symmetrically in the middle and the corresponding line profiles (c). The double bright spot became a single one, indicating formation of an oxygen molecular species, O22-. (d-f) AFM images before (d) and after (e) KPFS manipulation of Oad2--Oad2- with the tip positioned slightly off the middle position between the two atoms and the corresponding line profiles (f). (g-i) AFM images before (g) and after (h) KPFS manipulation of Oad2--Oad2- with the tip positioned above one oxygen atom and the corresponding line profiles (i), indicating a change in the charge state from Oad2- to Oad- of only the oxygen atom that is under the tip. (j-m) DFT optimized structures are shown in each case: (j) Oad2--Oad2-; (k) Oad2--Oad-; (l) Oad--Oad-; and (m) O22- adsorbed at the on-top Ti5c site. Note that there is also another adsorption site, the bridge site. Dashed horizontal lines depict the differences in heights of the oxygen adatoms. (A), (B), and (C) denote the three key manipulation scenarios, see text. (Image: Osaka University)
Oxygen is one of the most abundant elements on Earth. Usually found in its diatomic form, O2, oxygen is highly reactive and doesn't hang around long in a gaseous state. The ground state, or least reactive form of oxygen, is referred to as triplet oxygen because it has three possible arrangements of electron spins. However, singlet oxygen, with its one possible spin arrangement, is more reactive and plays a major role in a diverse range of chemical reactions, ranging from green fuel production to photodynamic cancer treatments.
Unsurprisingly then, there is significant interest in controlling the formation and activation of molecular oxygen.
"We used Kelvin probe force spectroscopy to examine the charge states of oxygen atoms attached to a titanium dioxide rutile surface, and to then manipulate the charge through the transfer of individual electrons to and from pairs of oxygen atoms," explains Adachi. "We identified three different charge states amongst the pairs: O-/O-, O2-/O2-, and O-/O2-. Depending on the applied voltage and where we positioned the tip of the probe relative to the atoms, we could then reversibly switch the charge between the O- and O2- states."
The team then showed that they could use the same method to induce controlled, reversible bond formation between two adjacent oxygen atoms, forming molecular oxygen .
Interestingly, they also found that the charge state could be controlled remotely by locating the tip elsewhere on the rutile surface. Electrons were transferred to the oxygen atoms via surface polarons, a phenomenon where electrons can travel through a crystal lattice.
"This level of control over the charge state of oxygen atoms has not previously been possible," says corresponding author of the study Associate Professor Yan Jun Li. "Our work provides a novel method to examine transition-metal-oxide-based catalytic reactions, and can likely be applied to other atoms, and perhaps other surfaces, where controlled chemical reactions initiated by charge manipulation are performed."

Source: Osaka University
