Transforming 2D Planes into 3D soft and flexible structures by engineering adhesion between thin-films

(Nanowerk News) Professor Sohee Kimís research team in the Department of Robotics Engineering at Daegu Gyeongbuk Institute of Science and Technology (DGIST) succeeded in developing a technology to produce flexible 3D medical devices (ACS Applied Materials & Interfaces, "Transformation of 2D Planes into 3D Soft and Flexible Structures with Embedded Electrical Functionality"). It is expected to be used in developing various devices with embedded electrical functionality or soft robots.
Professor Sohee Kimís team developed a new technology for 3D device production that selectively bonds polymeric thin films using plasma. Since this technology can manufacture 3D flexible devices more easily than the existing methods, it is expected to have a positive impact on the future research.

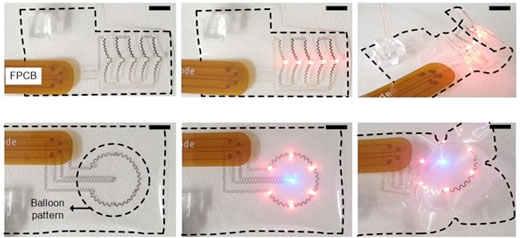

Electrical functionality demonstrated on a flexible and soft 3D device by connecting LEDs
Electrical functionality demonstrated on a flexible and soft 3D device by connecting LEDs. (Image: DGIST)
The existing flexible 3D structures could not avoid manual handling such as directly gluing the top and bottom layers of the structure, or transferring pre-strained patterns on the substrate, which has limited the production efficiency at a very low level.
However, Professor Kimís team created 3D flexible structures by generating covalent bonds only at the edges of patterns formed between two polymeric thin films with plasma and by injecting air into non-bonded patterns (namely, balloons) to inflate them. Moreover, the new 3D structures can be used as a sensor or actuator1 because metal wires can be easily patterned inside and outside the balloons.
A customized 3D device that is in contact with a complicated surface can also be produced using the technology developed by Professor Kimís team. Since the 3D device is inflated like a balloon where the device is put on, it can have a customized shape along the curvature of a body part with a complex surface, like the human brain.
In addition, wire patterns in the micrometer scale can be easily formed inside and outside the 3D structure, which has been difficult so far in the production of 3D structures using conventional microelectromechanical systems (MEMS) technologies. It is expected to be widely applied, for instance, for pressure measurement inside the body including the cranium, devices with electrical stimulation and detection functions, and soft robots.
Source: Daegu Gyeongbuk Institute of Science and Technology
