Recyclable nanomotors enable ultra-sensitive detection of trace pollutants in water

(Nanowerk Spotlight) The presence of trace emerging pollutants in aquatic environments poses a significant challenge to the health of ecosystems and human populations. These pollutants, which include persistent organic compounds, pharmaceuticals, and endocrine-disrupting chemicals, can exert adverse effects even at extremely low concentrations. The complex nature of these contaminants, coupled with their low abundance, makes their detection and quantification a daunting task.
Traditional methods for monitoring and removing emerging pollutants often struggle to keep pace with the ever-increasing diversity and prevalence of these substances in water bodies. Static adsorption techniques, which rely on the passive interaction between pollutants and adsorbent surfaces, have been the cornerstone of conventional approaches. However, the slow diffusion kinetics and limited adsorption capacity of these methods hinder their effectiveness in dealing with highly diluted pollutants in large volumes of water.
Recent advancements in micro- and nanotechnologies have opened up new avenues for addressing the limitations of traditional pollutant detection methods. The emergence of micro- and nanomotors, capable of autonomous propulsion and enhanced mixing in complex environments, has sparked interest in their potential application for environmental monitoring.
These tiny devices can convert various forms of energy, such as light or magnetic fields, into mechanical motion, enabling them to navigate and interact with their surroundings. Magnetic actuation, in particular, has garnered attention due to its non-invasive nature and ease of control, making it a promising approach for microscale propulsion.
Building upon these technological advancements, a team of researchers in China has developed a groundbreaking solution for the rapid concentration and ultra-sensitive detection of trace emerging pollutants in water. In their study published in the journal Advanced Functional Materials ("Recyclable Nanomotors for Dynamic Enrichment and Detection of Low-Concentration Emerging Pollutants"), they introduce recyclable autonomous propulsion R-Fe3O4@Au@β-CD-EG-PF127 (RAP) nanomotors driven by magnetism. These innovative nanomotors leverage a multi-interaction adsorption mechanism and fast driving capability to efficiently capture and enrich trace concentrations of various emerging pollutants.
The RAP nanomotors comprise a core-shell structure, with a magnetic R-Fe3O4 core, a gold (Au) nanoparticle shell, and a β-CD-EG-PF127 polymer coating. The magnetic core enables precise control and rapid movement of the nanomotors under an external magnetic field. The gold nanoparticle shell provides a large surface area for pollutant adsorption and enhances the surface-enhanced Raman scattering (SERS) signal for sensitive detection.

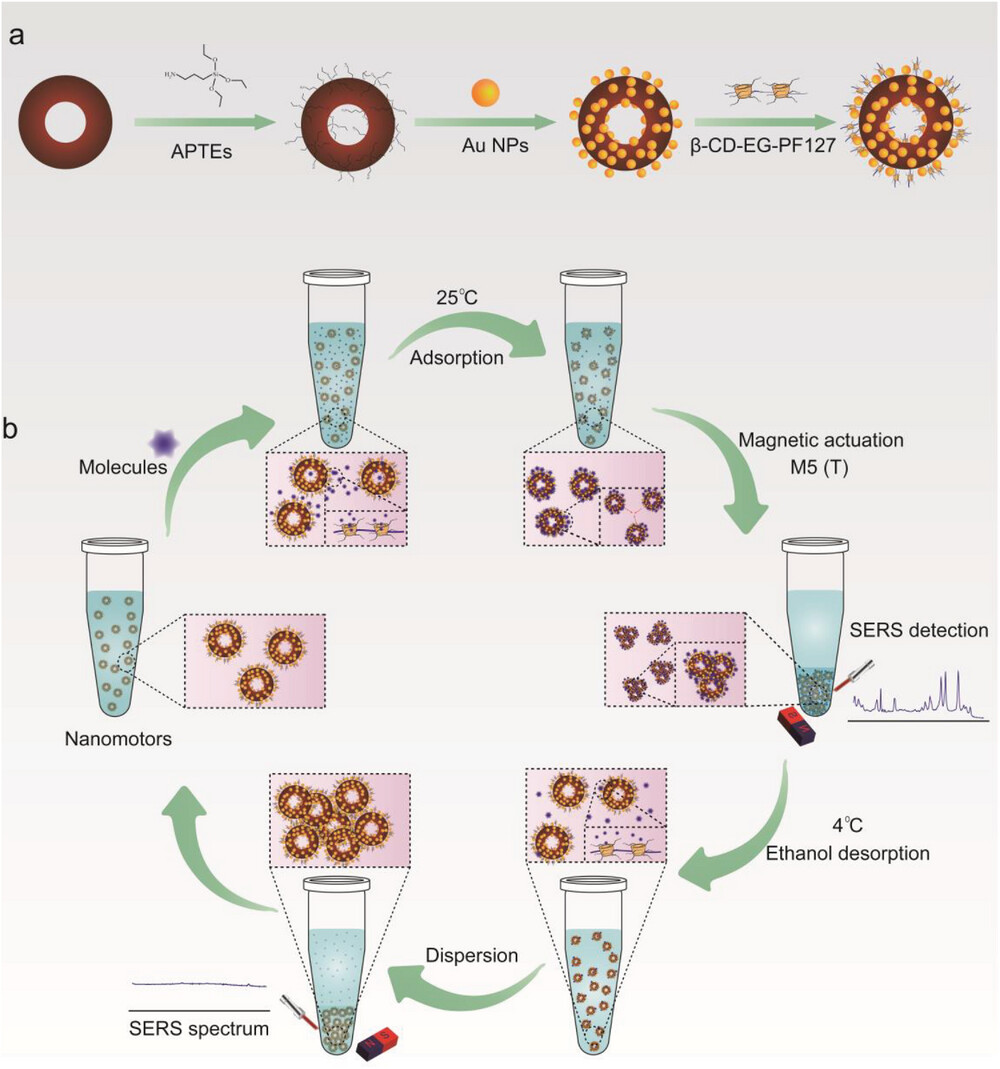

Fabrication and sensing of RAP nanomotors
Fabrication and sensing of RAP nanomotors. Preparation process of a) RAP nanomotors and b) schematic of dynamic enrichment and cyclic SERS detection. (Reprinted with permission by Wiley-VCH Verlag)
The β-CD-EG-PF127 polymer coating is a key component of the RAP nanomotors, offering unique temperature-responsive properties and facilitating the multi-interaction adsorption mechanism. This polymer consists of β-cyclodextrin (β-CD), ethylene glycol (EG), and Pluronic F127 (PF127). The β-CD component forms host-guest interactions with pollutant molecules, effectively trapping them within its hydrophobic cavity. This selective adsorption enhances the capture efficiency of the nanomotors for a wide range of pollutants.
Additionally, the EG and PF127 segments of the polymer contribute to the temperature-responsive behavior of the coating. At lower temperatures, the polymer chains exist in an extended conformation, allowing for easy access to the β-CD cavities and facilitating pollutant adsorption. When the temperature is increased, the polymer chains collapse, leading to the desorption of captured pollutants.
This temperature-responsive property enables the self-cleaning and recyclability of the RAP nanomotors, as the adsorbed pollutants can be easily released by simple cooling in ethanol, allowing the nanomotors to be reused multiple times without compromising their performance.
The researchers demonstrated the exceptional adsorption capacity of the RAP nanomotors, achieving a capture efficiency of over 90% for various emerging pollutants within a mere 3 minutes. The nanomotors exhibited superior performance compared to conventional adsorbents like activated carbon. The multi-interaction adsorption mechanism, involving host-guest interactions with β-cyclodextrin and hydrogen bonding with the polymer chains, enables the nanomotors to effectively trap pollutants of different sizes and properties.
The dynamic motion of the RAP nanomotors plays a crucial role in enhancing pollutant capture and detection. Under the influence of an external magnetic field, the nanomotors actively navigate through the solution, promoting extensive contact with pollutant molecules. This dynamic interaction significantly improves mass transfer and accelerates the adsorption process, overcoming the limitations of static adsorption techniques. The continuous movement of the nanomotors also ensures that all captured pollutants fall within the enhanced electromagnetic field range, resulting in highly sensitive SERS signals.
The ultra-sensitive detection capability of the RAP nanomotors is a testament to their superior performance. The researchers achieved remarkable detection limits as low as 10-10 M for various emerging pollutants, surpassing the sensitivity of conventional analytical methods. The high sensitivity can be attributed to the synergistic effect of the nanomotors' multi-interaction adsorption mechanism and the enhanced electromagnetic field generated by the gold nanoparticle shell. The SERS-based detection allows for rapid and accurate identification of pollutants, enabling timely intervention and remediation efforts.
To demonstrate the practical applicability of the RAP nanomotors, the researchers conducted experiments in real-world water samples, including river water and tap water. The nanomotors successfully detected trace concentrations of pollutants spiked into these samples, achieving recovery rates exceeding 85%.
Furthermore, the nanomotors demonstrated the ability to simultaneously detect multiple pollutants in complex water matrices without the need for extensive sample pretreatment. These results highlight the robustness and versatility of the RAP nanomotors in real-world applications.
The development of recyclable magnetic nanomotors for the dynamic enrichment and ultra-sensitive detection of trace emerging pollutants represents a significant advancement in water quality monitoring. The integration of these nanomotors into existing water treatment systems could significantly enhance the efficiency and effectiveness of pollutant removal processes.
The scalability of this technology is a crucial factor in its potential for broader environmental monitoring applications. The synthesis of RAP nanomotors involves simple and cost-effective processes, making it feasible to produce them in large quantities.
In addition, the magnetic properties of the nanomotors allow for their easy separation and recovery from water samples, facilitating their reuse and minimizing the generation of secondary waste.
As the threat of emerging pollutants continues to loom over our water resources, the implementation of innovative technologies like the RAP nanomotors becomes increasingly crucial. The ability to rapidly concentrate and precisely detect these contaminants at ultra-low concentrations is a vital step towards safeguarding ecosystems and protecting public health. The research presented in this study paves the way for the development of scalable and practical solutions for eliminating and monitoring the transport of emerging pollutants in the environment.
With further advancements and optimization, magnetic nanomotor-based capture technology holds immense potential for revolutionizing water quality monitoring and environmental remediation. The versatility of the RAP nanomotors suggests their possible application in other fields, such as biomedical diagnostics and targeted drug delivery.
