Flow-through electrodes make hydrogen 50 times faster

Flow-through electrodes make hydrogen 50 times faster

(Nanowerk News) Electrolysis, passing a current through water to break it into gaseous hydrogen and oxygen, could be a handy way to store excess energy from wind or solar power. The hydrogen can be stored and used as fuel later, when the sun is down or the winds are calm.
Unfortunately, without some kind of affordable energy storage like this, billions of watts of renewable energy are wasted each year.
For hydrogen to be the solution to the storage problem, water-splitting electrolysis would have to be much more affordable and efficient, said Ben Wiley, a professor of chemistry at Duke University. And he and his team have some ideas about how to accomplish that.
Nickel felt electrode compared to a penny
An example of the small, flow-through electrode that Duke researchers used to produce more hydrogen from electrolysis with a penny for scale. (Image: Wiley Lab, Duke University)
Wiley and his lab recently tested three new materials that might be used as a porous, flow-through electrode to improve the efficiency of electrolysis. Their goal was to increase the surface area of the electrode for reactions, while avoiding trapping the gas bubbles that are produced.
"The maximum rate at which hydrogen is produced is limited by the bubbles blocking the electrode - literally blocking the water from getting to the surface and splitting," Wiley said.
In a paper appearing in Advanced Energy Materials ("Alkaline Water Electrolysis at 25 A cm-2 with a Microfibrous Flow-through Electrode"), they compared three different configurations of a porous electrode through which the alkaline water can flow as the reaction occurs.
They fabricated three kinds of flow-through electrodes, each a 4 millimeter square of sponge-like material, just a millimeter thick. One was made of a nickel foam, one was a 'felt' made of nickel microfibers, and the third was a felt made of nickel-copper nanowires.

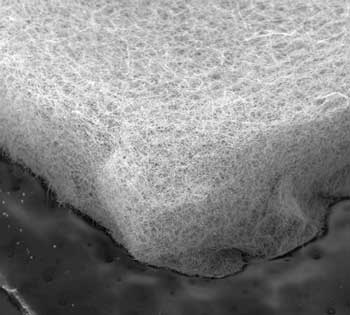

Nickel Felt electrode - microscopic view
A microscopic view of the nickel felt material thatoptimized surface area and bubble release as it produced hydrogen from electrolysis. (Image: Wiley Lab, Duke University)
Pulsing current through the electrodes for five minutes on, five minutes off, they found that the felt made of nickel-copper nanowires initially produced hydrogen more efficiently because it had a greater surface area than the other two materials. But within 30 seconds, its efficiency plunged because the material got clogged with bubbles.
The nickel foam electrode was best at letting the bubbles escape, but it had a significantly lower surface area than the other two electrodes, making it less productive.
The sweet spot turned out to be a felt of nickel microfiber that produced more hydrogen than the nanowire felt, despite having 25 percent less surface area for the reaction.
Over the course of a 100-hour test, the microfiber felt produced hydrogen at a current density of 25,000 milliamps per square centimeter. At that rate, it would be 50 times more productive than the conventional alkaline electrolyzers currently in use for water electrolysis, the researchers calculated.

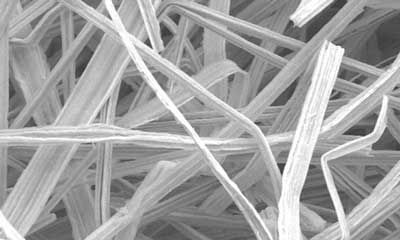

Nickel Felt electrode - EM view
An electron microscope view of the nickel felt material that optimized surface area and bubble release as it produced hydrogen from electrolysis. (Image: Wiley Lab, Duke University)
The cheapest way to make industrial quantities of hydrogen right now isn't by splitting water, but by breaking natural gas (methane) apart with very hot steam - an energy-intensive approach that creates 9 to 12 tons of C02 for every ton of hydrogen it yields, not including the energy needed to create 1000-degree Celsius steam.
Wiley said commercial producers of water electrolyzers may be able to make improvements in the structure of their electrodes based on what his team has learned. If they could greatly increase the hydrogen production rate, the cost of hydrogen produced from splitting water could go down, perhaps even enough to make it an affordable storage solution for renewable energy.
He is also working with a group of students in Duke's Bass Connections program who are exploring whether flow-through electrolysis might be scaled up to make hydrogen from India's abundant solar power.
Source: Duke University
