Waveguides in Nanotechnology: Essential Pathways for Light and Other Electromagnetic Waves

Introduction to Waveguides

Waveguides are structures designed to direct and control the propagation of electromagnetic waves from one point to another. They play a crucial role in various fields, including telecommunications, photonics, and integrated circuits. By confining electromagnetic waves to a specific path, waveguides enable the efficient transfer of energy and information over distances, both short and long. Their application ranges from guiding light in optical fibers to channeling microwaves in radar systems.

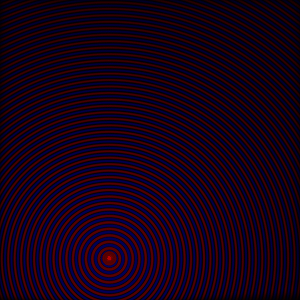

You can guide light with a waveguide. You can also couple the waveguide with a ring resonator, where the light will circulate. And if you attach a second waveguide to the ring resonator you can effectively move the light from one waveguide to the other. (Image: Jacopo Bertolotti, Wikimedia Commons, CC0 1.0 Universal)

How Waveguides Work

Waveguides function by confining electromagnetic waves within a structure, allowing them to travel with minimal loss of energy. This confinement is typically achieved through total internal reflection within the waveguide, which occurs when a wave travels through a medium with a higher refractive index than the surrounding environment. Optical fibers, for instance, use this principle to guide light over long distances with minimal loss.

Types of Waveguides

Optical Fibers: Thin strands of glass or plastic that guide light. Used in telecommunications for high-speed data transmission.
Microwave Waveguides: Metal tubes that guide microwaves. Common in radar and satellite communication systems.
Planar Waveguides: Integrated onto chips, these waveguides are fundamental in photonic integrated circuits, enabling the miniaturization of optical devices.
Plasmonic Waveguides: Utilize surface plasmons to confine light at the nanoscale, bridging the gap between electronic and photonic devices.

Principles of Waveguide Design

The design of a waveguide depends on the wavelength of the electromagnetic waves it is intended to guide. Parameters such as the waveguide's size, shape, and material composition are optimized to achieve minimal attenuation and dispersion. For optical applications, materials with high transparency and low absorption at the operating wavelength are preferred. In microwave applications, conductive materials like copper or aluminum are commonly used.

Applications of Waveguides

Waveguides have a wide array of applications, from the delivery of high-speed internet through optical fiber networks to the development of compact sensors and lasers in nanophotonics. They are integral to the advancement of quantum computing, where they can manipulate quantum states of light, and in medical devices, where they are used in imaging techniques like endoscopy.

Impact of Waveguides on Nanotechnology

In nanotechnology, waveguides are pivotal in the development and operation of devices at the nanoscale. Nanoscale waveguides, such as plasmonic waveguides, enable the manipulation and control of light beyond the diffraction limit, opening up new possibilities for ultra-compact photonic devices. These advances are crucial for the next generation of integrated circuits, sensors, and quantum computing components, where space is at a premium and efficiency is paramount.

Key Examples of Nanoscale Waveguides

Photonic Crystal Waveguides: By creating patterns of nanostructures that affect the flow of light within a material, photonic crystal waveguides can precisely control light paths and properties, enabling highly efficient optical circuits.
Silicon-on-insulator (SOI) Waveguides: Utilized in integrated optics, SOI waveguides allow for the dense packing of waveguides on a chip, significantly enhancing the performance of optical communication systems.
Plasmonic Waveguides: These leverage the interaction between electromagnetic field and metal electrons to confine light into sub-wavelength dimensions, critical for sensors and nanoscale lasers that require intense light-matter interactions.

Challenges and Innovations

While waveguides offer numerous advantages, they also face challenges such as signal loss, coupling efficiency, and miniaturization for integrated photonic devices. Innovations in materials science, such as the use of photonic crystals and metamaterials, have led to the development of waveguides that overcome these hurdles, allowing for more efficient and versatile photonic devices.
