Electronic Ink: How Charged Pigment Particles Create Paper-Like Displays

In one sentence: Electronic ink is a reflective, non-emissive display medium in which electrically driven pigment particles, usually suspended in a dielectric fluid inside microcapsules or microcups, rearrange to form paper-like images that can remain visible with little or no holding power.

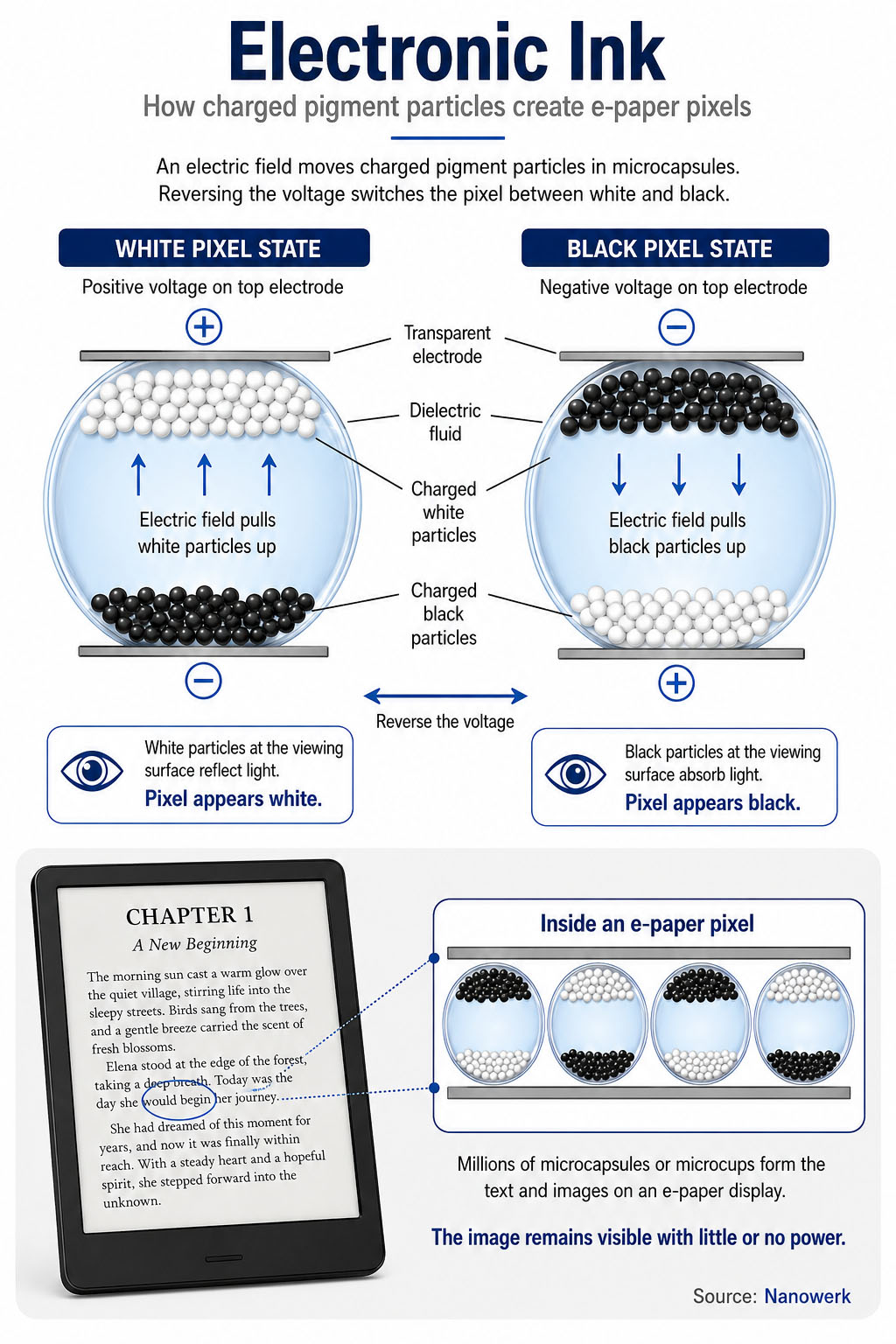

In the classic black-and-white electrophoretic version, electronic ink consists of transparent capsules or cells tens of micrometers in diameter, each filled with a clear dielectric oil that holds white scattering pigment particles — typically rutile titanium dioxide — and dark absorbing particles, traditionally carbon black or a black polymer-coated pigment. The particle populations have different charge responses, so reversing or shaping the applied voltage brings one population toward the viewing surface and drives the other toward the rear side of the capsule or cell. This produces a bright or dark pixel, while carefully shaped voltage waveforms generate intermediate gray levels. Because the particles are held near the capsule wall by short-range surface forces, the image is bistable and remains visible without further current draw.

The modern technology dates to 1997, when JD Albert, Barrett Comiskey, and MIT Media Lab professor Joseph Jacobson founded E Ink Corporation to commercialize microencapsulated electrophoretic ink. Their 1998 Nature paper ("An electrophoretic ink for all-printed reflective electronic displays") described an electrophoretic dispersion of microparticles in the 0.1 to 5 µm size range, sealed inside polymer microcapsules 30 to 300 µm across, that could be coated like a paint to form a bistable display readable in direct sunlight. Particle-based reflective displays had been explored at Xerox PARC since the 1970s, but microencapsulation was the step that solved long-standing problems of particle clustering, sedimentation, and short device lifetime. Commercial e-readers using electronic paper based on electrophoretic ink began appearing in the early 2000s, with broader consumer adoption following later in the decade.

The image-forming mechanism is classical electrophoresis adapted to a confined colloidal display medium; in the simplest black-and-white case, it is a two-color system. Each pigment particle carries a stable surface charge acquired through adsorbed surfactants or covalently bound charge-control agents, with effective zeta potentials of typically tens of millivolts in absolute value. A voltage of a few tens of volts across the thin capsule layer establishes a field on the order of 1 V/µm, and the particles drift toward the electrode of opposite sign at velocities set by their electrophoretic mobility. For a 1 µm white pigment particle in a low-viscosity hydrocarbon, this gives a transit time across a 30 µm capsule of the order of 100 milliseconds, which sets the practical update rate of a microencapsulated electrophoretic display.

Once a particle reaches the viewing-side or rear inner wall of the capsule or cell, it is held there by van der Waals attraction and short-range steric forces, so removing the field does not immediately let it drift back. This gives the display its characteristic bistability and explains why an e-reader can continue to show its last page after the battery dies. The white particles are deliberately chosen to scatter light strongly — rutile titanium dioxide has a refractive index of about 2.7 and a particle size near the optimum for visible-light scattering — while the dark particles absorb broadly across the visible spectrum. The viewer sees either a strongly diffuse white reflection or a near-black absorption, with a near-Lambertian angular profile that gives electronic ink its “ink-on-paper” appearance under ambient light.

Three components determine the electro-optical performance of an electronic ink: the white pigment, the dark pigment, and the dielectric fluid with its charge-control additives. The white pigment is almost always rutile titanium dioxide with a primary particle size of a few hundred nanometers, where the combination of high refractive index and a size comparable to the wavelength of light maximizes Mie scattering. To prevent rapid sedimentation of dense rutile in a much lighter oil, the bare TiO2 is surface-modified with silane coupling agents and grafted with poly(methyl methacrylate) or other acrylic polymers, giving low-density core–shell composite particles with a stable surface charge.

The dark pigment is more varied. Early electronic inks used surface-treated carbon black, which gives excellent absorption but is difficult to charge consistently. Many modern systems use polymeric, oxide-coated, or otherwise surface-engineered black particles in which a copper chromite or carbon-loaded polymer core may be encapsulated within a charged shell that anchors charge-control agents and improves density matching to the fluid. Colored particles for multi-pigment systems are made by similar surface chemistry applied to copper phthalocyanine blue, diarylide yellow, or quinacridone red colloidal pigments. The dielectric fluid itself is typically a mixture of long-chain aliphatic hydrocarbons with relative permittivity around 2 and ohmic conductivity below 10−12 S/m.

In the original E Ink process, capsules are produced by complex coacervation of gelatin and gum arabic, or by in situ polymerization of urea–formaldehyde or melamine–formaldehyde resins around an oil-in-water emulsion whose disperse phase is the pigmented dielectric ink. The pH, temperature, ionic strength, and stirring rate are tuned so that the shell-forming polymer deposits onto the oil droplets and hardens, yielding hollow capsules typically between 30 and 100 µm in diameter. These are washed, classified by size, and resuspended in a transparent aqueous polymer binder. The composite is coated onto a transparent conductive plastic film with indium tin oxide as the front electrode, then laminated to a patterned backplane with thin-film transistors. The technique is closely related to the nanocapsule chemistry used in drug delivery, scaled up to display dimensions.

An alternative architecture replaces the spherical capsule with an embossed array of micron-scale wells, each filled with electrophoretic ink and sealed with a polymer film. Microcups give tighter control over fluid volume and wall geometry, which is useful for multi-pigment color systems that need well-defined fluid columns. The finished ink layer is only a few tens of micrometers thick and is laminated to an active-matrix backplane that addresses each pixel individually, allowing roll-to-roll printed-electronics manufacturing and a natural fit with flexible electronics.

For more than a decade after commercial launch, electronic ink remained essentially monochrome, with shades of gray produced by partial mixing of black and white particles. Color was originally obtained by adding a static red–green–blue color filter array in front of a black-and-white panel, in close analogy to the filter scheme used in liquid crystal displays. The result is acceptable for moderate-resolution applications but loses brightness because each subpixel transmits only one color band of the underlying reflectance.

More recent multi-particle systems engineer additional colored pigments directly into the ink. Three-particle systems combine black, white, and red or yellow particles for the four- and six-color displays widely used in electronic shelf labels. Advanced full-color electrophoretic systems use multiple colored particle populations, such as cyan, magenta, yellow, and white, with carefully separated charge states and complex driving waveforms that let each pixel render a wide subset of subtractive colors without a color filter. Performance still falls short of an OLED in saturation and refresh rate, but on a static page the image quality can be suitable for static color signage and illustrations, while still consuming negligible holding power.

Electronic ink belongs to a broader family of reflective, non-emissive display media that share the goal of paper-like visual quality and low power consumption but use different physical mechanisms. The table below summarizes the three most commercially important technologies and the Gyricon rotating-ball system that historically preceded them.

Each technology trades off speed, color gamut, viewing angle, and ease of manufacture. Microencapsulated electrophoretic ink wins decisively for static text and long battery life and now dominates the e-reader, signage, and electronic shelf label markets. Electrowetting, demonstrated by Hayes and Feenstra in 2003, can in principle drive video-rate content with a reflective, low-power display, but achieving uniform multi-stable pixel arrays at scale has proved difficult. Electrochromic systems are attractive for see-through and stretchable form factors and are starting to appear in simple wearable indicators.

The largest application of electronic ink remains the e-reader, where high-resolution monochrome text, sunlight readability, and weeks of battery life are a near-perfect match to the technology. Electronic shelf labels in supermarkets and warehouses are now the single largest unit-volume application, exploiting the fact that an electronic ink tag only consumes power when its price is updated. Tens of millions of additional units appear each year in luggage tags, smart cards, smartwatch faces, room-occupancy signs, public-transport timetables, building wayfinding, and small status displays in industrial equipment.

Large-format reflective signage is a growing segment as multi-pigment color e-paper reaches sizes of 30 inches and beyond, with deployments in transit terminals, retail, and outdoor advertising where emissive LCD or LED screens are penalized by their power consumption and limited daylight visibility. Research demonstrations have also coupled electrophoretic inks with flexible plastic backplanes and electronic skin form factors to produce bendable displays for clothing, packaging, and medical wearables. Electronic ink is increasingly combined with conductive silver nanoparticle inks and other nanoinks for the electrodes in fully printed flexible displays.

The two long-standing limitations of electronic ink are refresh speed and color saturation. Because the image is formed by mechanically moving micrometer-scale particles between electrodes, intrinsic update times are in the hundreds of milliseconds, and complex update waveforms designed to suppress ghosting can take seconds for a full color image. Saturation is constrained by the need to balance multiple pigment populations of different sign and mobility within a single capsule. Multi-particle architectures, optimized driving waveforms, and lateral electrode geometries that move particles in the plane of the display rather than through its thickness have all narrowed this gap, but matching the gamut of an emissive OLED remains difficult.

Materials research focuses on the pigment side: brighter colored pigments with controllable polarity and surface chemistry, density-matched core–shell particles that suppress sedimentation, and stimuli-responsive particles such as fluorescent, magnetic, or photochromic variants that add a second switching mechanism on top of electrophoretic migration. Looking further ahead, hybrid architectures that combine electronic ink with transparent electronics and microfluidics point toward displays that are not only paper-like but also see-through, foldable, or even stretchable.

Electronic ink is a generic term for reflective display media in which electrically addressable pigment particles or color-changing materials form an image. In this article, the term primarily refers to electrophoretic ink: charged pigment particles moving in a dielectric fluid inside microcapsules or microcups. E Ink is the registered trademark of E Ink Corporation, the company spun out of the MIT Media Lab in 1997 that commercialized microencapsulated electrophoretic ink. In everyday usage the two are often used interchangeably, but electrowetting and electrochromic materials are better treated as adjacent reflective display technologies rather than identical systems.

Electronic ink is bistable: the pigment particles stay in place by van der Waals and short-range surface forces once they reach the viewing-side or rear side of the capsule or cell. No voltage is needed to hold the image, only to change it. The last page rendered can remain visible for extended periods, with gradual degradation only from slow particle relaxation, leakage, or environmental effects.

Yes. Several color platforms exist, including color-filter arrays placed over monochrome electrophoretic panels, three-particle systems that add red or yellow pigments for shelf labels, and four-particle systems that use cyan, magenta, yellow, and white particles in a subtractive color scheme. Color e-paper offers a wider gamut than monochrome, though brightness, saturation, and refresh speed are still lower than emissive displays such as OLED.

The image is formed by physically moving micrometer-scale pigment particles through a viscous dielectric fluid, which is limited by their electrophoretic mobility and the gap between electrodes. Typical microencapsulated displays take roughly 100 to 300 milliseconds for simple black-white transitions, and longer for full grayscale or color waveforms, compared with milliseconds for liquid-crystal molecule reorientation. Faster waveforms, smaller particles, and architectures such as electrowetting are used where video-rate reflective displays are needed.

No. Electronic ink in a display context is a non-emissive medium of charged pigment particles whose function is optical switching. Conductive nanoparticle inks used in printed electronics, such as silver, copper, or carbon nanoinks, are formulated to deposit and sinter into conductive films that form circuit traces or electrodes. The two are sometimes combined: an electrophoretic ink layer can be deposited on top of a backplane patterned with conductive nanoink electrodes.
