Researchers tailor power source for wearable electronics

(Nanowerk News) Wearable power sources for wearable electronics are limited by the size of garments.
With that in mind, researchers at Case Western Reserve University have developed flexible wire-shaped microsupercapacitors that can be woven into a jacket, shirt or dress (Energy Storage Materials, "Flexible and wearable wire-shaped microsupercapacitors based on highly aligned titania and carbon nanotubes").
wearable electronics
By their design or by connecting the capacitors in series or parallel, the devices can be tailored to match the charge storage and delivery needs of electronics donned.
While there's been progress in development of those electronics--body cameras, smart glasses, sensors that monitor health, activity trackers and more--one challenge remaining is providing less obtrusive and cumbersome power sources.
"The area of clothing is fixed, so to generate the power density needed in a small area, we grew radially-aligned titanium oxide nanotubes on a titanium wire used as the main electrode," said Liming Dai, the Kent Hale Smith Professor of Macromolecular Science and Engineering. "By increasing the surface area of the electrode, you increase the capacitance."
Dai and Tao Chen, a postdoctoral fellow in molecular science and engineering at Case Western Reserve, published their research on the microsupercapacitor in the journal Energy Storage Materials this week. The study builds on earlier carbon-based supercapacitors.
A capacitor is cousin to the battery, but offers the advantage of charging and releasing energy much faster.
How it works
In this new supercapacitor, the modified titanium wire is coated with a solid electrolyte made of polyvinyl alcohol and phosphoric acid. The wire is then wrapped with either yarn or a sheet made of aligned carbon nanotubes, which serves as the second electrode. The titanium oxide nanotubes, which are semiconducting, separate the two active portions of the electrodes, preventing a short circuit.
In testing, capacitance--the capability to store charge--increased from 0.57 to 0.9 to 1.04 milliFarads per micrometer as the strands of carbon nanotube yarn were increased from 1 to 2 to 3.
When wrapped with a sheet of carbon nanotubes, which increases the effective area of electrode, the microsupercapactitor stored 1.84 milliFarads per micrometer. Energy density was 0.16 x 10-3 milliwatt-hours per cubic centimeter and power density .01 milliwatt per cubic centimeter.
Whether wrapped with yarn or a sheet, the microsupercapacitor retained at least 80 percent of its capacitance after 1,000 charge-discharge cycles. To match various specific power needs of wearable devices, the wire-shaped capacitors can be connected in series or parallel to raise voltage or current, the researchers say.

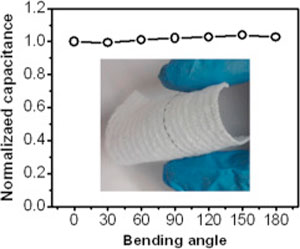

When bent up to 180 degrees hundreds of times, the capacitors showed no loss of performance. Those wrapped in sheets showed more mechanical strength.
"They're very flexible, so they can be integrated into fabric or textile materials," Dai said. "They can be a wearable, flexible power source for wearable electronics and also for self-powered biosensors or other biomedical devices, particularly for applications inside the body."
Dai's lab is in the process of weaving the wire-like capacitors into fabric and integrating them with a wearable device.
Source: Case Western Reserve University
