Stable skyrmion bags created in thin ferromagnetic films

Researchers demonstrate a robust method to generate skyrmion bags as complex magnetic spin textures in thin ferromagnetic films for advanced spintronic control. Skyrmion bags are donut-like, topologically rich spin textures that go beyond the widely studied single skyrmions.

(Nanowerk News) Magnetic skyrmions are nanometer-sized, stable magnetization vortices with promising applications in spintronics and data storage. Their simplest forms have been explored extensively and take on a circular shape where the spins rotate by 180° from the outside to the inside in a thin magnetic film. The spins in the center of the skyrmion, therefore, point to the opposite direction to those outside the skyrmion.

More intricate configurations include the so-called skyrmionium where the spins rotate by 360° and the spins in the skyrmionium’s center have the same orientation as those outside, resulting in a ring-like structure. Remarkably, this ring can then be filled with skyrmions again, leading to the target skyrmion for one skyrmion inside the ring and skyrmion bags for multiple skyrmions inside.

While theory has already predicted such higher-order configurations, they have remained difficult to produce in real materials in a controlled way.

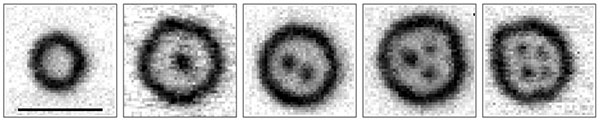

X-ray microscopy images of the magnetization textures showing the different orders of skyrmions bags, ranging from the empty skyrmionium to a bag filled with four skyrmions. The scale bar is 500 nm. (Image: MBI)

In a new study published in Advanced Materials ("Controlled Formation of Skyrmion Bags"), the research team demonstrates how nanoscale modifications of the magnetic properties of the material, introduced via focused helium-ion beams, can foster the generation of these higher-order textures. These local anisotropy modifications are designed such that the desired structures can be formed selectively using single ultrafast laser pulses.

The resulting magnetic textures with features on the sub-100-nm scale were directly imaged using a high-resolution X-ray microscope equipped with a tailored laser system developed at the Max Born Institute. The researchers demonstrate the generation of a variety of skyrmion bags, from the empty skyrmionium up to bags filled with four skyrmions. They showed that the skyrmion-bag generation triggered by single laser pulses has significantly higher success rate compared to a purely magnetic-field-driven approach. The repeatable, consistent generation of such textures is the key prerequisite for studying the dynamics of higher-order skyrmions in future time-resolved experiments.

This work offers a practical route to investigate and utilize complex skyrmion states in thin-film materials, which is an important step towards future spintronic devices that leverage topological control at the nanoscale.

Source: Max Born Institute (Note: Content may be edited for style and length)
