Dendrites: Branching Crystal Growth in Batteries and Materials Science

In materials science and electrochemistry, dendrites are branching, tree-like crystal structures that form when atoms or ions deposit on a surface under non-equilibrium conditions. The term derives from the Greek dendron, meaning tree, and describes any growth pattern in which a solid extends outward from a nucleation point along preferred crystallographic directions, producing side branches that repeat at progressively finer scales. Dendrites appear across a wide range of physical systems – from solidifying metals in a foundry to mineral patterns on exposed rock faces – but the context where they attract the most research attention today is energy storage. In rechargeable batteries that use metallic anodes, uncontrolled dendrite growth is the principal failure mode, capable of piercing separators, short-circuiting cells, and triggering thermal runaway.

The electrochemical dendrite problem has persisted since the earliest attempts to build rechargeable lithium batteries in the 1970s and 1980s. Lithium metal offers a theoretical specific capacity of 3,860 mAh g–1 and the lowest standard electrode potential (–3.04 V vs. the standard hydrogen electrode), making it the most attractive anode material for high-energy-density batteries. Those same properties make lithium extremely reactive and prone to forming dendrites during charging. Decades of work on nanoscale interfacial engineering, electrolyte formulation, and nanomaterials design have produced effective suppression strategies, but dendrite-free cycling at high current densities remains an open challenge for commercial lithium-metal, lithium–sulfur, lithium–air, and aqueous zinc batteries.

Dendrite formation during electrochemical deposition is governed by the interplay between ion transport, surface kinetics, and mechanical forces. During charging, metal ions from the electrolyte are reduced and deposited onto the anode surface. If deposition were perfectly uniform, a smooth, dense metal layer would form. In practice, small perturbations – a scratch on the electrode, a compositional inhomogeneity in the thin film of the solid electrolyte interphase (SEI), or a local fluctuation in ion concentration – create sites where the current density is slightly higher. Metal accumulates faster at these protrusions, and the resulting geometric enhancement of the electric field draws still more ions to the tip, initiating a positive feedback loop.

At low current densities, lithium tends to deposit as rounded nodules or whisker-like filaments. As the current density increases, the ion depletion zone near the electrode surface deepens. When the concentration of metal ions at the electrode drops toward zero – a condition described by the Sand's time model – the system becomes unstable and branching dendrites nucleate. The branching morphology is thermodynamically favored under diffusion-limited conditions: a protruding tip has preferential access to fresh electrolyte, while the recessed base is screened from incoming ions. This diffusion-limited aggregation mechanism is the same physical process that shapes snowflake arms and certain mineral deposits, operating in an electrochemical setting.

The SEI plays a decisive role. On lithium metal, the SEI forms spontaneously because the electrode potential is below the reduction potential of virtually all known electrolyte solvents. An ideal SEI would be mechanically robust, ionically conductive, and electronically insulating. In practice, the SEI is heterogeneous and fragile: repeated expansion and contraction during plating and stripping fractures it, exposing fresh lithium that reacts with electrolyte. These cracks become preferential channels for dendrite initiation, making SEI engineering at the nanoscale inseparable from controlling dendrite growth.

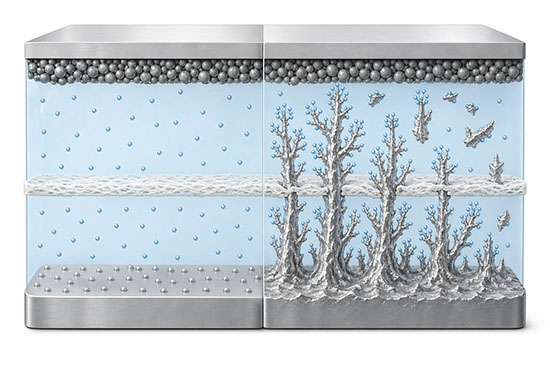

The consequences of uncontrolled dendrite growth range from gradual performance degradation to catastrophic failure. The most immediate risk is an internal short circuit: if a dendrite bridges the gap between anode and cathode, it creates a direct electronic pathway that discharges the cell rapidly, generating intense local heating. In cells with flammable liquid electrolytes, this can trigger thermal runaway – a self-accelerating exothermic process leading to cell venting, fire, or explosion. Early commercial lithium-metal batteries in the late 1980s were recalled after dendrite-induced fires, delaying the adoption of lithium-metal anodes for decades.

Even when dendrites do not cause a short circuit, they degrade battery performance through subtler mechanisms. During discharge, the base of a dendrite can dissolve preferentially, electrically disconnecting the tip and leaving behind stranded metallic fragments known as "dead lithium." This dead lithium is coated with SEI and can no longer participate in electrochemical cycling, causing irreversible capacity loss. Repeated plating and stripping also consume electrolyte through continuous SEI reformation, increasing cell impedance. In lithium-metal cells without suppression strategies, coulombic efficiency can fall below 95%, far short of the greater than 99.9% threshold needed for commercially viable long-life batteries.

Modifying the electrolyte composition is one of the most versatile approaches to dendrite suppression. High-concentration electrolytes reduce the number of free solvent molecules available to decompose at the anode surface, producing a more stable and uniform SEI. Fluorinated solvents and additives such as fluoroethylene carbonate and lithium nitrate promote the formation of lithium fluoride-rich interphases that are mechanically stronger and more ionically conductive than those formed in standard carbonate electrolytes. Dual-salt and localized high-concentration electrolyte formulations have pushed coulombic efficiency above 99% in laboratory cells.

Rather than relying on spontaneous SEI formation, researchers apply pre-formed protective layers to the anode using techniques such as atomic layer deposition (ALD), chemical vapor deposition (CVD), and spin coating. Thin films of aluminum oxide, lithium phosphorus oxynitride (LiPON), or polymeric coatings serve as artificial SEI layers that regulate lithium ion flux and mechanically suppress protrusion growth. Nanocoatings only a few nanometers thick can significantly extend cycle life by providing a homogeneous barrier between the reactive lithium surface and the electrolyte.

Porous, three-dimensional current collectors reduce the effective local current density by distributing lithium deposition across a much larger surface area. Frameworks made from copper nanowires, carbon nanotubes, nanofibers, or nanoporous metal foams confine lithium deposition within their internal volume, preventing vertical growth toward the separator. These hosts also accommodate the volume changes that accompany lithium plating and stripping, reducing mechanical stress on the SEI.

Replacing liquid electrolytes with solid-state electrolytes (SSEs) was originally expected to solve the dendrite problem through mechanical blocking: a sufficiently rigid electrolyte should, in principle, resist penetration by soft lithium metal. In practice, the relationship is more complex. Lithium filaments have been observed growing through polycrystalline garnet-type ceramics (Li7La3Zr2O12), sulfide-based glasses, and polymer electrolytes, exploiting grain boundaries, pores, and residual electronic conductivity pathways. Amorphous SSE thin films without grain boundaries have shown substantially better resistance to lithium penetration, with some compositions sustaining current densities above 3 mA cm–2 without short-circuiting. Composite electrolyte architectures that pair a rigid ceramic core with compliant polymer interfaces represent a promising direction for balancing dendrite resistance with interfacial contact.

While lithium dendrites dominate the research literature, analogous growth problems affect other metal-anode battery chemistries. Rechargeable aqueous zinc-ion batteries and zinc-air batteries are attractive for grid-scale storage because of zinc's low cost, high volumetric capacity (5,855 mAh cm–3), and inherent safety in water-based electrolytes. During charging, zinc deposits unevenly, forming hexagonal platelets and sharp dendrites that can pierce separators. The problem is compounded by hydrogen evolution, corrosion, and insulating zinc oxide formation. Strategies parallel to those in lithium systems – electrolyte additives, surface functionalization, and textured electrode architectures – are being developed for zinc batteries.

Sodium metal anodes present similar dendrite challenges. Sodium is far more abundant and cheaper than lithium, making sodium-metal batteries appealing for large-scale stationary storage. Sodium dendrites share the same fundamental growth physics – diffusion-limited instability amplified by SEI heterogeneity – but sodium's lower shear modulus and different SEI chemistry require distinct suppression approaches. Nanoelectrochemistry research is advancing understanding of ion transport and interfacial reactions across all these metal-anode systems.

In situ and operando characterization techniques have transformed dendrite research by allowing observation of growth in real time inside working batteries. Optical microscopy in transparent cells provides direct visualization of nucleation and branching. Scanning electrochemical microscopy maps local electrochemical activity across the electrode surface, revealing heterogeneities that seed dendrite growth. Cryo-transmission electron microscopy (cryo-TEM) preserves the native structure of lithium deposits and SEI at atomic resolution, avoiding beam damage and chemical alteration that plague conventional electron microscopy of alkali metals.

Nuclear magnetic resonance (NMR) spectroscopy and X-ray tomography provide three-dimensional, non-destructive mapping of lithium distribution within sealed cells. Operando X-ray tomography has revealed that dendrites in solid-state electrolytes propagate along grain boundaries rather than through tip-growth as in liquid electrolytes. Molecular dynamics simulations and phase-field models complement experiments by predicting how electrolyte composition, temperature, and pressure influence dendrite morphology.

The term dendrite appears across many other scientific disciplines, always describing branching, tree-like structures but arising from different mechanisms. In neuroscience, dendrites are the extensions of neurons that receive synaptic signals. Immunology borrows the term for dendritic cells named after their branching shape. Metallurgists study dendritic crystals that form when molten metal solidifies under non-equilibrium cooling. Geologists recognize dendritic mineral deposits (often manganese or iron oxides) on rock surfaces, sometimes mistaken for plant fossils. Dendritic snowflakes, branching river drainage networks, valley networks on Mars, and diffusion-limited aggregation patterns in computational modeling all share the same underlying physics of branching growth under diffusion-limited conditions.

Why do dendrites form in lithium batteries? Dendrites form in lithium batteries because metal ions deposit unevenly on the electrode surface during charging. Irregularities in the solid electrolyte interphase, local variations in ion concentration, and non-uniform current distribution create preferred nucleation sites where metal accumulates faster than on surrounding areas. Once a small protrusion forms, it concentrates the local electric field and attracts more ions, causing it to grow into a branching structure that can eventually bridge the gap between electrodes.

Can solid-state batteries eliminate dendrite problems? Solid-state electrolytes were originally expected to mechanically block dendrites, but research has shown that lithium can still penetrate many solid electrolytes through grain boundaries, pores, and pre-existing defects. Lithium filaments have been observed growing through polycrystalline garnet-type and sulfide-based ceramics at elevated current densities, causing short circuits. While solid-state electrolytes reduce the risk compared to liquid systems – especially by removing flammable solvents – they do not inherently eliminate the dendrite problem.

Do zinc batteries also have dendrite issues? Yes, zinc dendrites are a significant challenge in rechargeable aqueous zinc-ion batteries and zinc-air batteries. Zinc deposits unevenly during charging, forming sharp protrusions that can pierce separators. The problem is compounded by hydrogen evolution, corrosion of the zinc anode, and the formation of insulating zinc oxide byproducts. Strategies such as electrolyte additives, artificial interphase layers, and textured zinc anodes are being developed to suppress dendritic growth in zinc systems.

At what current density do dendrites typically start forming? Dendrite onset depends on the specific electrochemical system, but in lithium metal cells with conventional liquid electrolytes, dendrites frequently begin to appear at current densities above approximately 0.5 mA cm–2. Higher current densities amplify concentration gradients near the electrode surface and increase the driving force for non-uniform deposition. Some advanced electrolyte formulations and interfacial coatings have pushed the dendrite-free threshold beyond 3 mA cm–2, and certain amorphous solid electrolyte thin films have resisted penetration up to 3.2 mA cm–2.

What is dead lithium and how is it related to dendrites? Dead lithium refers to metallic lithium that becomes electrically disconnected from the electrode during battery cycling. When a dendrite partially dissolves during discharge, its base can narrow and break, leaving behind an isolated lithium fragment surrounded by solid electrolyte interphase. This stranded metal can no longer participate in electrochemical reactions, causing irreversible capacity loss. Dead lithium accumulation is a major contributor to the poor coulombic efficiency and short cycle life of lithium metal batteries.

Nature Nanotechnology, Reviving the lithium metal anode for high-energy batteries

Chemical Reviews, Toward Safe Lithium Metal Anode in Rechargeable Batteries: A Review

Electrochemical Energy Reviews, A Review of Solid Electrolyte Interphase (SEI) and Dendrite Formation in Lithium Batteries

Progress in Materials Science, Unlocking dendrite growth in metal batteries
