Magnetite nanowires with sharp insulating transition

(Nanowerk News) Magnetite (Fe3O4) is best known as a magnetic iron ore, and is the source of lodestone. It also has potential as a high-temperature resistor in electronics.
In new research led by Osaka University, published in Nano Letters ("Three-Dimensional Nanoconfinement Supports Verwey Transition in Fe3O4 Nanowire at 10 nm Length Scale"), ultra-thin nanowires made from Fe3O4 reveal insights into an intriguing property of this mineral.

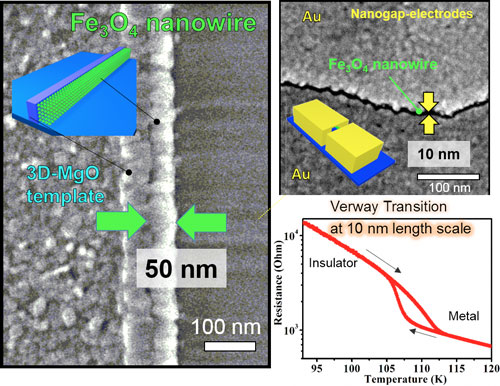

magnetite nanowire investigation
Fig. 1 Concept of the study. The 3D Fe3O4 (100) nanowire of 10 nm length scale on 3D MgO nanotemplate were produced using original nanofabrication techniques. The ultrasmall nanowire exhibited a prominent Verwey transition with lower defect concentration due to 3D nanoconfinement effect.
When cooled to around 120 K (-150°C), magnetite suddenly shifts from a cubic to a monoclinic crystal structure. At the same time, its conductivity sharply drops—it is no longer a metal but an insulator. The exact temperature of this unique “Verwey transition”, which can be used for switching in electronic devices, depends on the sample’s properties, like grain size and particle shape.
Magnetite can be made into thin films, but below a certain thickness—around 100 nm—the Verwey transition weakens and needs lower temperatures. Thus, for electronics at the nano-scale, preserving this key feature of Fe3O4 is a major challenge. The Osaka study used an original technique to produce magnetite nanowires of just 10 nanometer length, which had exquisite Verwey behavior.
As described by study co-author Rupali Rakshit, “We used laser pulses to deposit Fe3O4 onto a template of MgO. We then etched the deposits into wire shapes, and finally attached gold electrodes on either side so we could measure the conductivity of the nanowires.”
Crystal structure of magnetite
Fig. 2: Crystal structure of magnetite.
When the nanowires were cooled to around 110 K (-160°C), their resistance sharply increased, in line with typical Verwey behavior. For comparison, the team also produced Fe3O4 as a thin film with a large surface area on the millimeter scale. Its Verwey transition was not only weaker, but required temperatures down to 100 K.
“The nanowires were remarkably free of crystal defects,” says study leader Azusa Hattori. “In particular, unlike the thin film, they were not dogged by antiphase domains, where the atomic pattern is suddenly reversed. The boundaries of these domains block conduction in the metal phase. In the insulator phase, they stop resistivity from emerging, so they flatten out the Verwey transition.”
Transport properties for the nanowire (red) and the film (black) samples
Fig. 3: Transport properties for the nanowire (red) and the film (black) samples. The nanowire showed about six times larger resistance change through Verwey transition.
The nanowires were so pristine that the team could directly study the origin of the Verwey transition with unprecedented accuracy. The insulating properties of magnetite below 120 K are believed to come from “trimerons” repetitive structures in the low-temperature crystal. The researchers estimated the characteristic length scale of trimerons, and it closely matched the true size according to previous research.
“The Verwey transition has a host of potential uses in energy conversion, electronics and spintronics,” says Hattori. “If we can fine-tune the transition by controlling the amount of defects, we can envisage producing very low-powered, yet advanced devices to support green technology.”
Source: Osaka University
