A triboelectric nanogenerator for efficient ocean wave energy harvesting
(Nanowerk News) The ocean covers about 70% of the Earth's surface area and is the largest reservoir of energy. Researchers have been exploring the approach for harnessing ocean energy to solve the world energy crisis and pollution problems caused by thermal power generation.
|
|
The nanogenerator, including piezoelectric, triboelectric, and pyroelectric nanogenerators, is one of the key technologies for mechanical energy conversion. The triboelectric nanogenerator (TENG) makes use of the triboelectric effect and electrostatic induction to harvest mechanical energy based on contact or sliding electrification.
|
|
However, conventional TENG device is often based on solid/solid contact, and it is hard to ensure the contact intimacy of the two tribo-materials. In the meanwhile, the material surfaces will wear or become damaged after long-term friction. Also, the solid/solid-based TENGs need shell structures and/or mechanical components such as springs, holders, and rotors to harvest random vibration energy. The complex structure will reduce the efficiency of energy harvesting.
|
 |
| The team encapsulates water in a finger-sized tube. When water moves in the tube between regions of the two electrodes, triboelectrification happens and electric currents can be generated. Taking advantage of the flexibility of water, the WT-TENG can be operated in various modes, including rotation, swing, seesaw, and horizontal linear modes. (Image courtesy of the researchers)
|
|
The research team led by Prof. Zi Yunlong, Assistant Professor of the Department of Mechanical and Automation Engineering at CUHK, has recently overcome the above technical limitations and developed a water-tube-based TENG (WT-TENG) for irregular and low-frequency environmental energy harvesting, such as water waves (Advanced Energy Materials, "Multi-Mode Water-Tube-Based Triboelectric Nanogenerator Designed for Low-Frequency Energy Harvesting with Ultrahigh Volumetric Charge Density").
|
|
They encapsulated water in a finger-sized tube (FEP). When water moves in the tube between regions of the two electrodes, triboelectrification happens and electric currents can be generated. Taking advantage of the flexibility of water, the WT-TENG can be operated in various modes, including rotation, swing, seesaw, and horizontal linear modes, to harvest energy from diverse mechanical movements in the environment, such as ocean waves, wind, body and vehicle movements.
|
|
Due to the high contact intimacy of water and the tube surface, the output volumetric charge density of the WT-TENG is significantly enhanced, reaching 9 mC/m3 at a frequency as low as 0.25 Hz, which is beyond all previous reports.
|
|
Moreover, just like toy building bricks, multiple small WT-TENG units can be easily combined and integrated as one larger unit and realise multiplied electric outputs. Researchers designed two power generation units. One is a box with 34 WT-TENG units which was placed in the sea to collect ocean wave energy. Another one is a wristband composed of 10 WT-TENG units. A researcher put it on and kept swinging her arms for body motion energy harvesting. The peak power generations of the two tests were both enough to drive 150 LED light bulbs.
|
 |

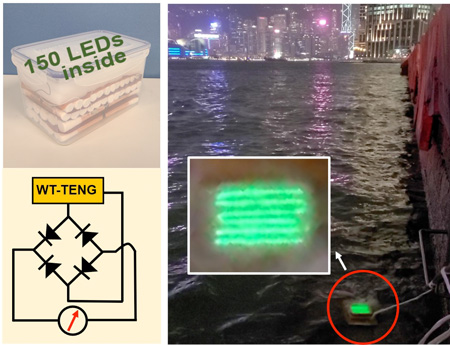

| The research team places a box with 34 WT-TENG units in the sea to collect ocean wave energy. The peak power generations is enough to drive 150 LED light bulbs. (Image courtesy of the researchers)
|
|
Prof. Zi Yunlong stated, "Previous designs of ocean energy harvesters have been equipped with electromagnetic-based generators which are large in size and heavy, and will only generate power if the frequency of ocean waves reaches a certain high level. Our latest research has overcome the technical hurdles and will promote the use of nanogenerators, especially in "blue energy" harvesting, offering a new direction for the development of renewable energy to achieve carbon neutrality."
|
