New health monitors are flexible, transparent and graphene enabled

(Nanowerk News) New technological devices are prioritizing non-invasive tracking of vital signs not only for fitness monitoring, but also for the prevention of common health problems such as heart failure, hypertension, and stress related complications, among others. Wearables based on optical detection mechanisms are proving an invaluable approach for reporting on our bodies inner workings and have experienced a large penetration into the consumer market in recent years.
Current wearable technologies, based on non-flexible components, do not deliver the desired accuracy and can only monitor a limited number of vital signs. To tackle this problem, conformable non-invasive optical-based sensors that can measure a broader set of vital signs are at the top of the end-users’ wish list.
In a recent study published in Science Advances ("Flexible graphene photodetectors for wearable fitness monitoring"), ICFO researchers have demonstrated a new class of flexible and transparent wearable devices that are conformable to the skin and can provide continuous and accurate measurements of multiple human vital signs. These devices can measure heart rate, respiration rate and blood pulse oxygenation, as well as exposure to UV radiation from the sun.
While the device measures the different parameters, the read-out is visualized and stored on a mobile phone interface connected to the wearable via Bluetooth. In addition, the device can operate battery-free since it is charged wirelessly through the phone.
“It was very important for us to demonstrate the wide range of potential applications for our advanced light sensing technology through the creation of various prototypes, including the flexible and transparent bracelet, the health patch integrated on a mobile phone and the UV monitoring patch for sun exposure. They have shown to be versatile and efficient due to these unique features”, reports Dr. Emre Ozan Polat, first author of this publication.

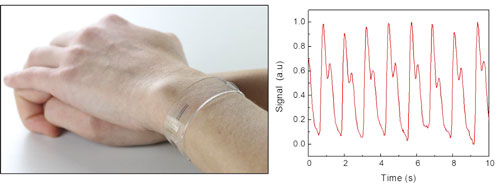

Flexible and transparent bracelet that uses graphene to measure heart rate, respiration rate and blood
pulse oxygenation
Figure 1: Flexible and transparent bracelet that uses graphene to measure heart rate, respiration rate and blood pulse oxygenation continuously. (Image: ICFO)
The bracelet was fabricated in such a way that it adapts to the skin surface and provides continuous measurement during activity (see Figure 1). The bracelet incorporates a flexible light sensor that can optically record the change in volume of blood vessels, due to the cardiac cycle, and then extract different vital signs such as heart rate, respiration rate and blood pulse oxygenation.
Secondly, the researchers report on the integration of a graphene health patch onto a mobile phone screen, which instantly measures and displays vital signs in real time when a user places one finger on the screen (see Figure 2). A unique feature of this prototype is that the device uses ambient light to operate, promoting low-power-consumption in these integrated wearables and thus, allowing a continuous monitoring of health markers over long periods of time.

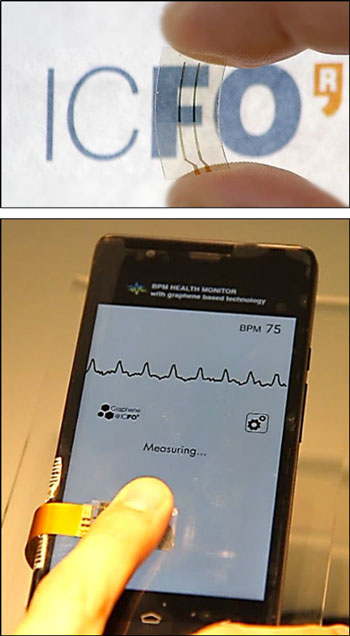

Graphene smart medical patch connects to a mobile phone to read multiple vital signs
Figure 2: Graphene smart medical patch connects to a mobile phone to read multiple vital signs instantly from finger and display real time measurements on the screen. (Image: ICFO)
ICFO’s advanced light sensing technology has implemented two types of nanomaterials: graphene, a highly flexible and transparent material made of one-atom thick layer of carbon atoms, together with a light absorbing layer made of quantum dots. The demonstrated technology brings a new form factor and design freedom to the wearables’ field, making graphene-quantum-dots-based devices a strong platform for product developers.
Dr. Antonios Oikonomou, business developer at ICFO emphasized this by stating that “The booming wearables industry is eagerly looking to increase fidelity and functionality of its offerings. Our graphene-based technology platform answers this challenge with a unique proposition: a scalable, low-power system capable of measuring multiple parameters while allowing the translation of new form factors into products.”
Dr. Stijn Goossens, co-supervisor of the study, also comments that “we have made a breakthrough by showing a flexible, wearable sensing system based on graphene light sensing components. Key was to pick the best of the rigid and flexible worlds. We used the unique benefits of flexible components for vital sign sensing and combined that with the high performance and miniaturization of conventional rigid electronic components.”
Finally, the researchers have been able to demonstrate a broad wavelength detection range with the technology, extending the functionality of the prototypes beyond the visible range. By using the same core technology, they have fabricated a flexible UV patch prototype (see Figure 3) capable of wirelessly transferring both power and data, and operating battery-free to sense the environmental UV-index. continuous monitoring of health markers over long periods of time.
Wireless and battery free UV patch that actively shows the skin exposure
Figure 3: Wireless and battery free UV patch that actively shows the skin exposure to protect against harmful effects of the sun. (Image: ICFO)
The patch operates with a low power consumption and has a highly efficient UV detection system that can be attached to clothing or skin, and used for monitoring radiation intake from the sun, alerting the wearer of any possible over-exposure.
“We are excited about the prospects for this technology, pointing to a scalable route for the integration of graphene-quantum-dots into fully flexible wearable circuits to enhance form, feel, durability, and performance”, remarks Prof. Frank Koppens, leader of the Quantum Nano-Optoelectronics group at ICFO. “Such results show that this flexible wearable platform is compatible with scalable fabrication processes, proving mass-production of low-cost devices is within reach in the near future.”
Source: ICFO
