Tuning atomic vacancies reshapes electronic and magnetic properties in crystalsControlling the arrangement of atomic vacancies offers a new way to adjust electronic, magnetic, thermal, and hydrogen storage properties in crystalline materials. |
| (Nanowerk Spotlight) Atomic vacancies—sites where atoms are absent in a crystal lattice—have become a powerful tool for engineering material properties at the atomic scale. While the role of vacancies in influencing material behavior has been recognized for decades, the ability to precisely control their arrangement remained technically out of reach. A recent study now demonstrates how vacancy patterns can be tuned in a controlled and reversible manner, transforming key material properties without altering chemical composition. |
| Crystalline materials form the foundation of modern technology, from semiconductors in electronics to thermoelectric materials used in energy conversion. In practice, no crystal is truly perfect; atomic vacancies are among the most common imperfections, disrupting the periodic atomic structure and influencing how electrons, heat, and other particles move through the material. |
| The significance of vacancies in shaping material behavior was first recognized in the early 20th century, with early studies focusing on their concentration. Traditional approaches to vacancy engineering involved controlling how many vacancies were present, using processing techniques such as annealing, quenching, and doping. However, the spatial arrangement of vacancies—whether they follow ordered patterns or appear randomly distributed—remained largely unexplored due to the difficulty of detecting and controlling these configurations at the atomic level. |
| Hints that vacancies could form organized patterns date back to electron diffraction studies in the 1970s. Researchers observed diffuse scattering bands in transition metal carbides and nitrides, suggesting that vacancies formed short-range ordered (SRO) patterns rather than being randomly scattered. Yet technical limitations at the time prevented direct visualization of these patterns. |
| Recent advances in electron microscopy and computational modeling have changed this picture. Half-Heusler compounds—a class of ternary intermetallic materials with potential applications in thermoelectrics, spintronics, and hydrogen storage—have emerged as ideal systems for studying vacancy ordering. In certain half-Heusler compositions, vacancies are not incidental but are essential to stabilizing the crystal structure, making them prime candidates for exploring how vacancy arrangements affect material behavior. |
| In a study published in Advanced Materials ("Tunable Vacancy Order and Emergent Functionalities in Half-Heusler Crystals"), researchers from Zhejiang University and Anhui University report that vacancy patterns in half-Heusler crystals can be deliberately and reversibly controlled. Their experiments reveal how transitions between vacancy order states dramatically reshape the electronic, magnetic, thermal, and hydrogen storage properties of the material. |
 |

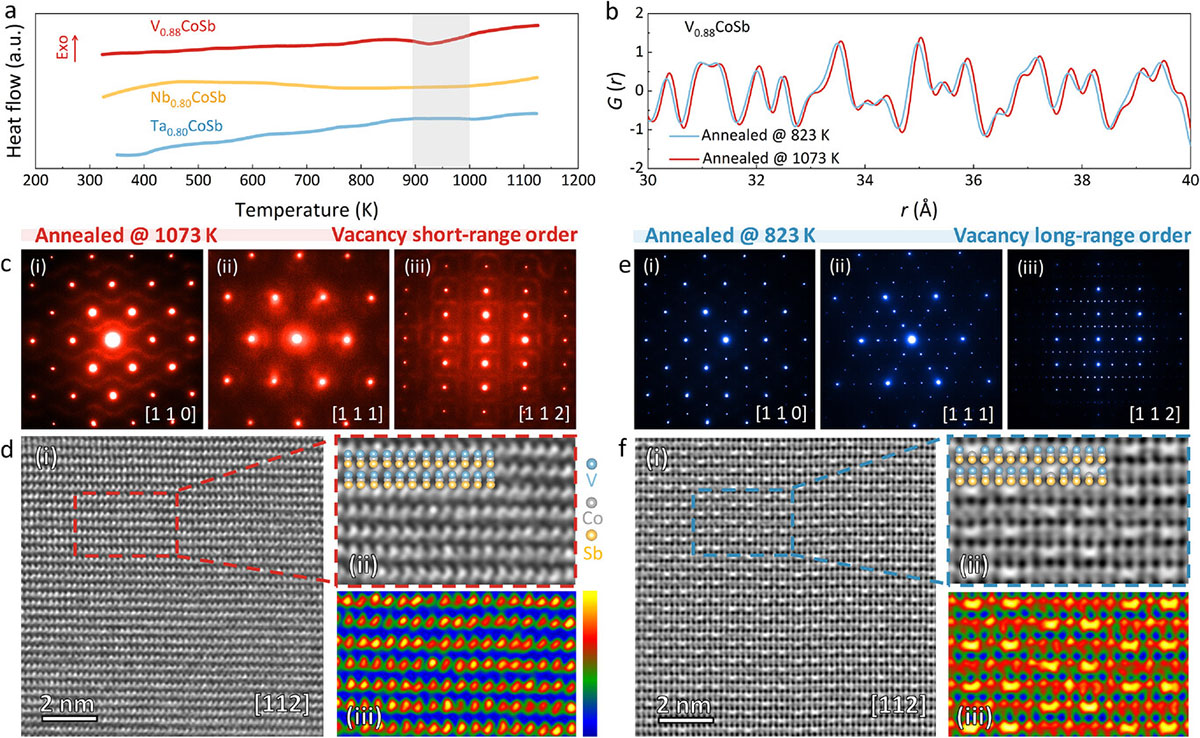

| Characterization of vacancy SRO and LRO in V₀.₈₈CoSb. a) Temperature-dependent DSC curves for V₀.₈₈CoSb, Nb₀.₈CoSb, and Ta₀.₈CoSb. b) SXPDF curves between 30 and 40 Å for V₀.₈₈CoSb annealed at 823 and 1073 K, respectively. The ED patterns for c) VCS-VSRO and e) VCS-VLRO in (i) [110], (ii) [111], and (iii) [112] directions, respectively. Representative ABF-STEM images for d) VCS-VSRO and f) VCS-VLRO. (ii) is the magnified view in the line boxes of (i). To better illustrate the contrast, the images for (ii) are colored in (iii), and the bar indicates the contrast. The contrast of ABF-STEM is inversely proportional to the number of atoms in a column and Z contrast, which is useful for revealing light atoms or vacancies. The dark contrast sites indicate the existence of atoms, while bright contrast sites correspond to the absence of atoms. (Image: Reprinted with permission by Wiley-VCH Verlag) (click on image to enlarge) |
| The research focused on V₁₋ᵟCoSb, a cation-deficient half-Heusler compound in which approximately 12% of vanadium atomic sites are vacant. Through differential scanning calorimetry, the team identified that V₀.₈₈CoSb undergoes a phase transition at around 900 K, above which the vacancies adopt a short-range ordered configuration and below which they form a long-range ordered (LRO) structure. |
| Using advanced electron microscopy, synchrotron X-ray pair distribution function analysis, and Monte Carlo simulations, the researchers determined the exact vacancy arrangements in both states. In the SRO state, vacancies follow local statistical rules: they avoid being nearest or next-nearest neighbors but tend to appear as third-nearest neighbors. This arrangement creates local order without a uniform long-range pattern. |
| By contrast, the LRO state divides the material into two distinct structural regions. One region, corresponding to the composition V₅/₆CoSb, exhibits a perfectly repeating vacancy pattern with long-range periodicity, adopting a different crystal symmetry (space group Fdd2) than the vacancy-free VCoSb regions (space group F43̄m). |
| This structural transition has profound effects on material behavior. When the vacancy arrangement changes from LRO to SRO, the electronic density of states effective mass—a key parameter describing how electrons behave in the material—rises nearly threefold, from 5.3 to 16.3 electron masses. This change reflects a significant modification of the electronic structure, confirmed by theoretical calculations showing disorder-induced broadening of electronic bands. |
| The shift to SRO also induces ferromagnetism, with a saturated magnetization of approximately 2.8 emu per gram at 5 K and a magnetic transition temperature near 16 K. In contrast, the LRO state exhibits negligible magnetization. The emergence of ferromagnetism is attributed to the disruption of periodicity in the vacancy arrangement, which alters magnetic interactions. |
| Thermal transport properties change alongside the electronic and magnetic behavior. Lattice thermal conductivity decreases by roughly 28% when transitioning from LRO to SRO, a result of enhanced phonon scattering in the disordered vacancy configuration. |
| Vacancy ordering also affects hydrogen storage performance. The researchers observed that the SRO state absorbs hydrogen more rapidly and releases it more efficiently than the LRO state. The maximum hydrogen capacity increased from 1.3 to 1.5 weight percent when tuning the vacancy order from LRO to SRO, matching the performance of some conventional transition metal hydrogen storage materials. |
| Beyond demonstrating that vacancy patterns can be switched between ordered and disordered states, the researchers showed that this transition can be controlled continuously. By adjusting the annealing time at a fixed temperature, they could incrementally tune the degree of vacancy order and, in turn, gradually modify the material’s physical properties. |
| This study reveals that atomic vacancies are not merely defects but can be engineered to tailor material behavior across multiple functionalities. By manipulating how vacancies are arranged within a crystal lattice, scientists can achieve property changes traditionally pursued through chemical doping or compositional modification. The ability to tune electronic, magnetic, thermal, and hydrogen storage properties through vacancy order alone introduces a new level of structural control in materials design. |
| The findings also suggest broader implications. The researchers note that similar vacancy order-mediated property changes may be possible in other half-Heusler compounds and potentially in other crystalline materials where defects play a critical role. Their work underscores a fundamental principle in materials science: that structure determines properties, and that structure includes not only the atoms present but also how the empty spaces between them are organized. |
