New AI analysis reveals unexplored paths for organic solar cell development |
| (Nanowerk Spotlight) Organic solar cells hold transformative potential for renewable energy. Unlike traditional silicon panels, these devices can be printed like newspapers, bent like plastic, and manufactured at a fraction of the cost. However, unlocking this potential requires navigating an immense scientific challenge: identifying the perfect combinations of organic materials from thousands of possibilities. |
| Each organic solar cell combines donor and acceptor materials that work together to convert sunlight into electricity. The efficiency of this conversion depends heavily on how well these materials complement each other. With hundreds of potential donor and acceptor materials available, researchers face millions of possible combinations. Testing each combination experimentally would take centuries. Meanwhile, the scientific literature describing previous attempts grows exponentially, with over 160,000 published papers making it impossible for researchers to comprehensively track progress through traditional reading. |
| Previous attempts to systematically analyze this vast body of research relied primarily on citation patterns or basic keyword searches. These approaches often missed crucial connections between different studies and failed to identify promising material combinations hidden in the literature. Scientists needed a more sophisticated way to extract meaningful patterns from this mountain of research. |
| A research team from Beijing Jiaotong University and the National Center for Nanoscience and Technology in Beijing has developed an artificial intelligence system that transforms how scientists can learn from previous research. Their work, published in Advanced Intelligent Systems ("Researching Organic Solar Cells from the Perspective of Literature Big Data Analysis"), demonstrates a novel approach to automatically extracting and analyzing detailed information about materials, performance metrics, and research trends from thousands of scientific papers. |
| The team developed specialized algorithms to identify and categorize information about organic solar cells from research papers. Their system can automatically extract specific performance measurements, material combinations, and technical details that would take humans years to compile manually. More importantly, it can identify patterns and relationships that might not be obvious even to expert researchers. |
 |

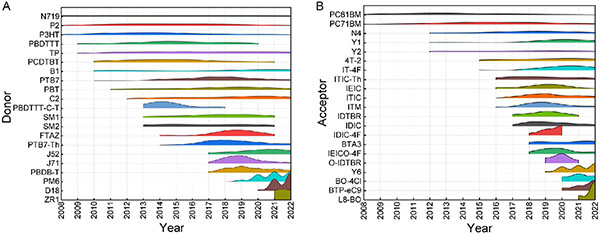

| The frequency of appearance of the top 21 acceptor materials reported in the organic solar cell database. A) The evolution of the top 21 donor materials over the years. B) The evolution of the top 21 acceptor materials over the years. Each ridge line in the graph represents the evolution of a specific material. The peak of each ridge line corresponds to the year when the material was most frequently reported. (Image: Reproduced from DOI:10.1002/aisy.202400306, CC BY) (click on image to enlarge) |
| The analysis revealed several crucial insights. The system identified seven major research directions in organic solar cells, with particular focus on "ternary" solar cells that combine three different organic materials. It mapped out how different performance metrics interact, showing clear relationships between factors like short-circuit current density and overall power conversion efficiency. |
| Perhaps most significantly, the system revealed a striking pattern in how researchers approach material selection. Most studies focus intensively on a small set of "core" materials while leaving vast areas of possible material combinations unexplored. The analysis identified four materials that consistently deliver higher performance: PM6, P3HT, Y6, and PC61BM. However, it also highlighted thousands of potentially promising material combinations that researchers have overlooked. |
| The system tracked how research interest in different materials evolves over time, typically peaking about a year after their introduction before declining as newer alternatives emerge. This pattern helps researchers understand which approaches have been thoroughly explored and which deserve fresh attention. |
| Beyond tracking materials, the system can automatically extract and analyze numerical data about solar cell performance from research papers. This creates a comprehensive database showing how different design choices affect efficiency, allowing researchers to quickly identify successful approaches and unexplored opportunities. |
| The team's methodology extends beyond solar cell research. Their approach demonstrates how artificial intelligence can help scientists navigate vast amounts of scientific literature in any field, identifying patterns and connections that might otherwise remain hidden. The system could accelerate research progress across multiple areas of materials science. |
| The researchers identified 18 optimal combinations of donor and acceptor materials that consistently produce high-efficiency solar cells. However, they emphasize that these represent only a tiny fraction of possible combinations. Their analysis suggests that many promising material pairs remain untested, pointing to new directions for experimental research. |
| The system also revealed that researchers often overlook the importance of short-circuit current density in improving solar cell efficiency. While much attention focuses on other performance metrics, the analysis showed that increasing short-circuit current density could provide a direct path to higher efficiency devices. |
| This work represents a fundamental shift in how scientists can approach materials research. By combining machine learning with comprehensive literature analysis, researchers can now identify promising research directions more systematically and avoid duplicating previous work. This approach could significantly accelerate the development of more efficient and cost-effective organic solar cells, bringing us closer to widespread adoption of this promising technology. |
